Automatic Warm Edge Spacer Bending Machine For Insulating Glass Processing

Name: Automatic Warm Edge Spacer Bending Machine For Insulating Glass Processing
Brand: LIJIANG GLASS
Price: 35 USD

Buy cheap Automatic Warm Edge Spacer Bending Machine For Insulating Glass Processing product

Brand Name : LIJIANG GLASS

Model Number : LJZW2020A

Certification : CE

Place of Origin : CHINA

MOQ : one

Price : 35,000 USD to 33,000 USD

Payment Terms : L/C, T/T

Supply Ability : 12 units per month

Delivery Time : 15 working days

Packaging Details : Wooden boxes and containers

Voltage : 380V 50HZ 3P

Power : 2.5KW

Dimension(L*W*H) : 10500mm*2200mm*2500mm

Weight : 1580 kg

Warranty : 1 Year

Contact Now

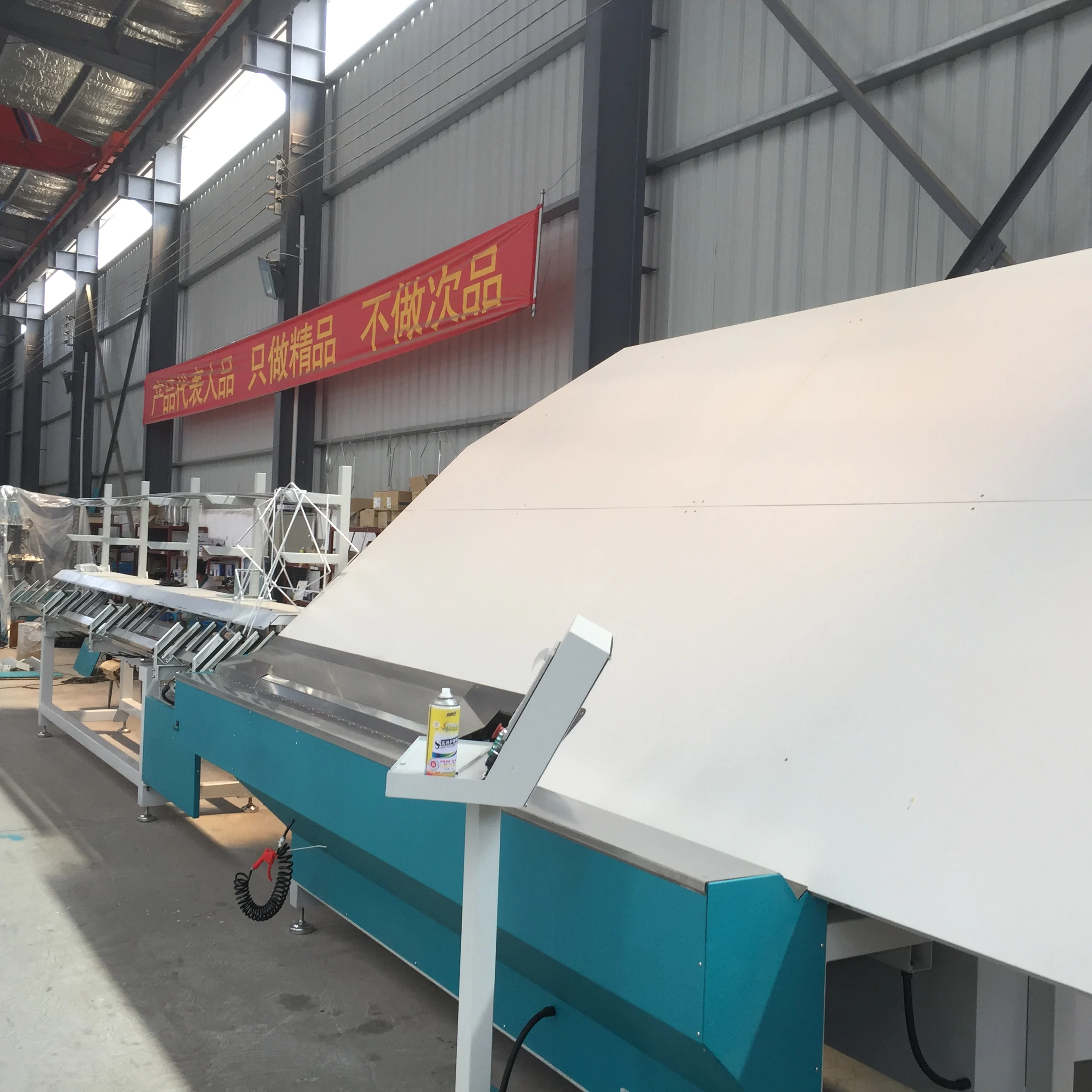

Automatic aluminum bar bending machine LJZW2020A

Automatic Warm Edge Spacer Bending Machine For Insulating Glass Processing

Product Description

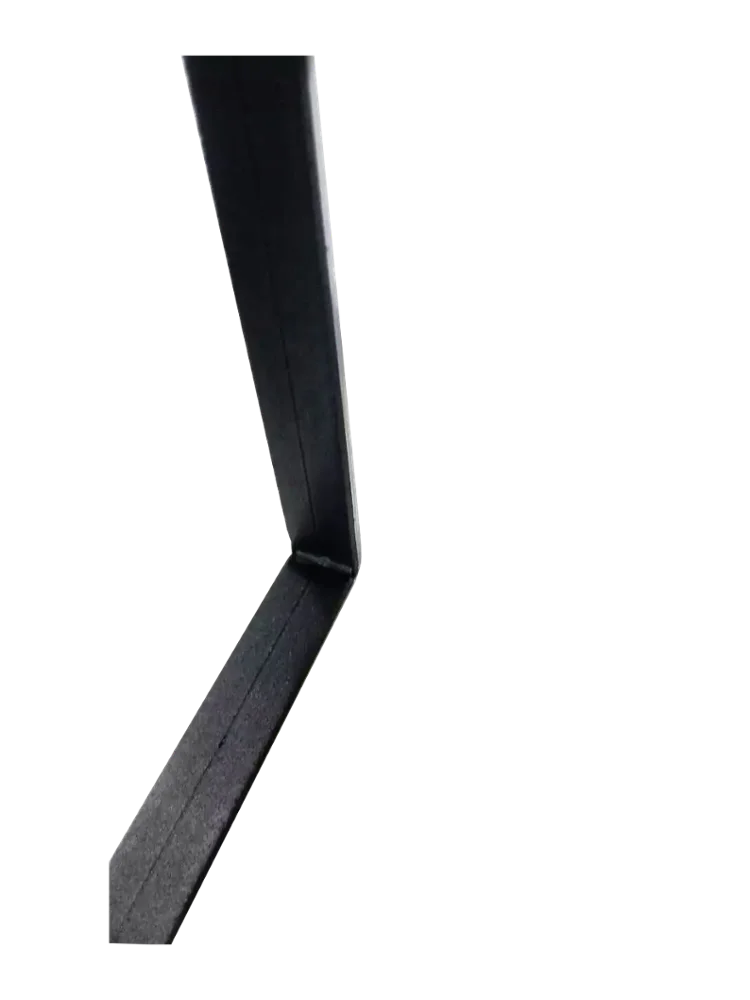

Automatic warm edge spacer bending machine for soft spacer bars

1•Siemens PLC control system with fast working speed •4 groups of storages (2 or 12 groups of storages can be optional) •Automatically cut and feed aluminum spacers •Automatically avoid the pins while bending and cutting •Bend spacer frames continuously •Aluminum spacers are available in sizes of 6A-27A •Different bending tools for different sizes of spacers •Pause and Reset device for handling equipment failures •Bending warm spacers, aluminum spacer and stainless steel spacers are optional, it is the different bending design •Connect to ERP system (Optional) •USB input function, read the excel format file directly
New bending machine can equipped with reading code function (Optional)


Details Images

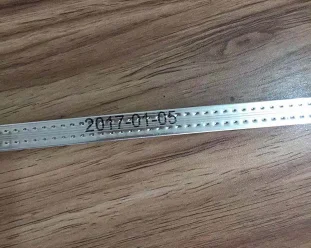

Details introduce: •Spacer printing code function (Optional)

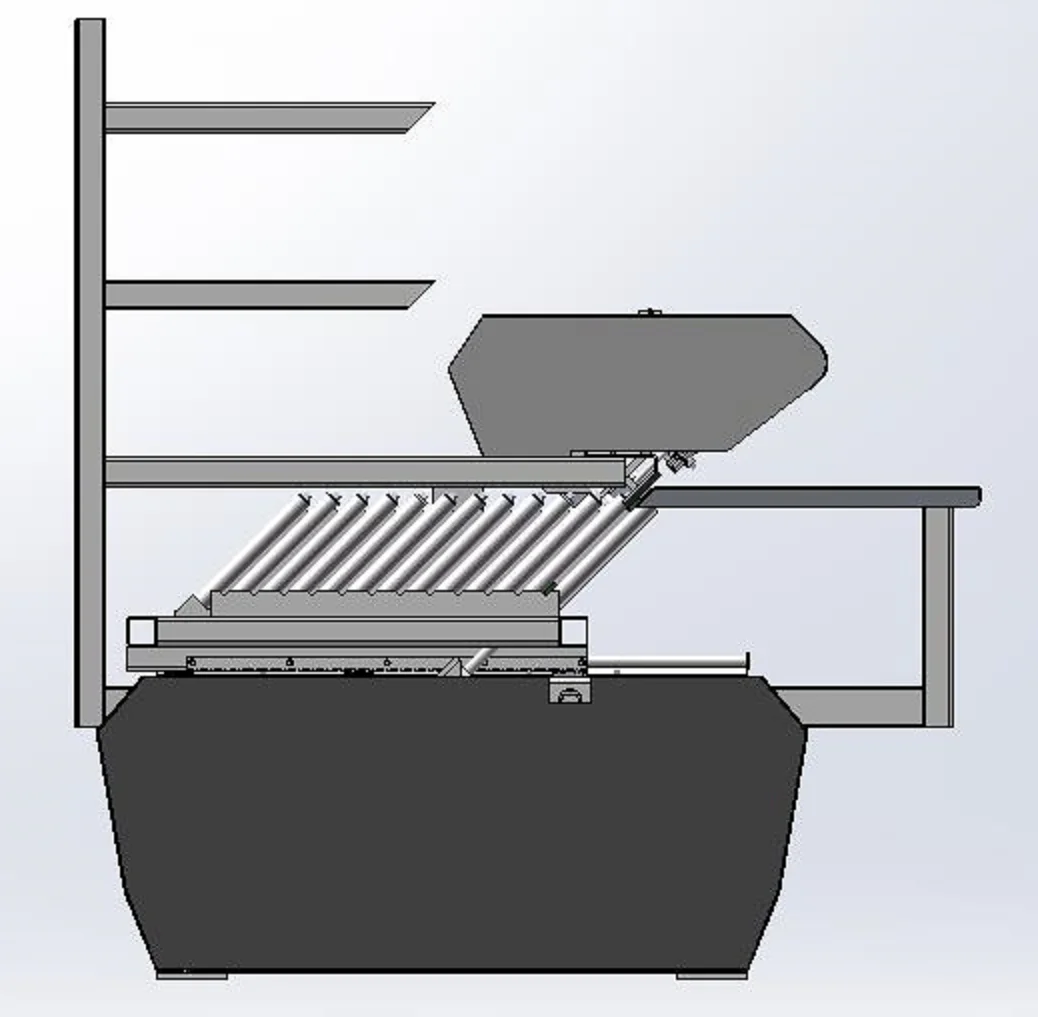

•2 or 12 groups of storages (Optional)

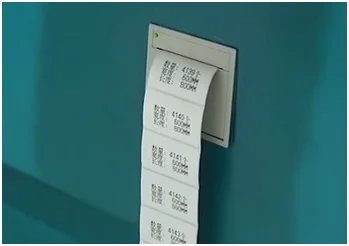

•Printing label sticker function (Optional)
•Bending stainless steel ( Optional)
•Bending aluminum spacer (Optional)

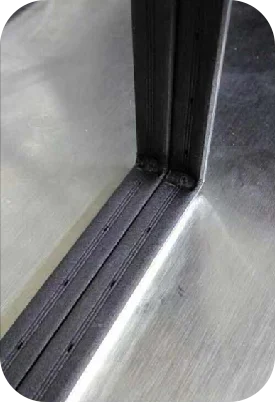

•Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 6A – 16A (Optional)

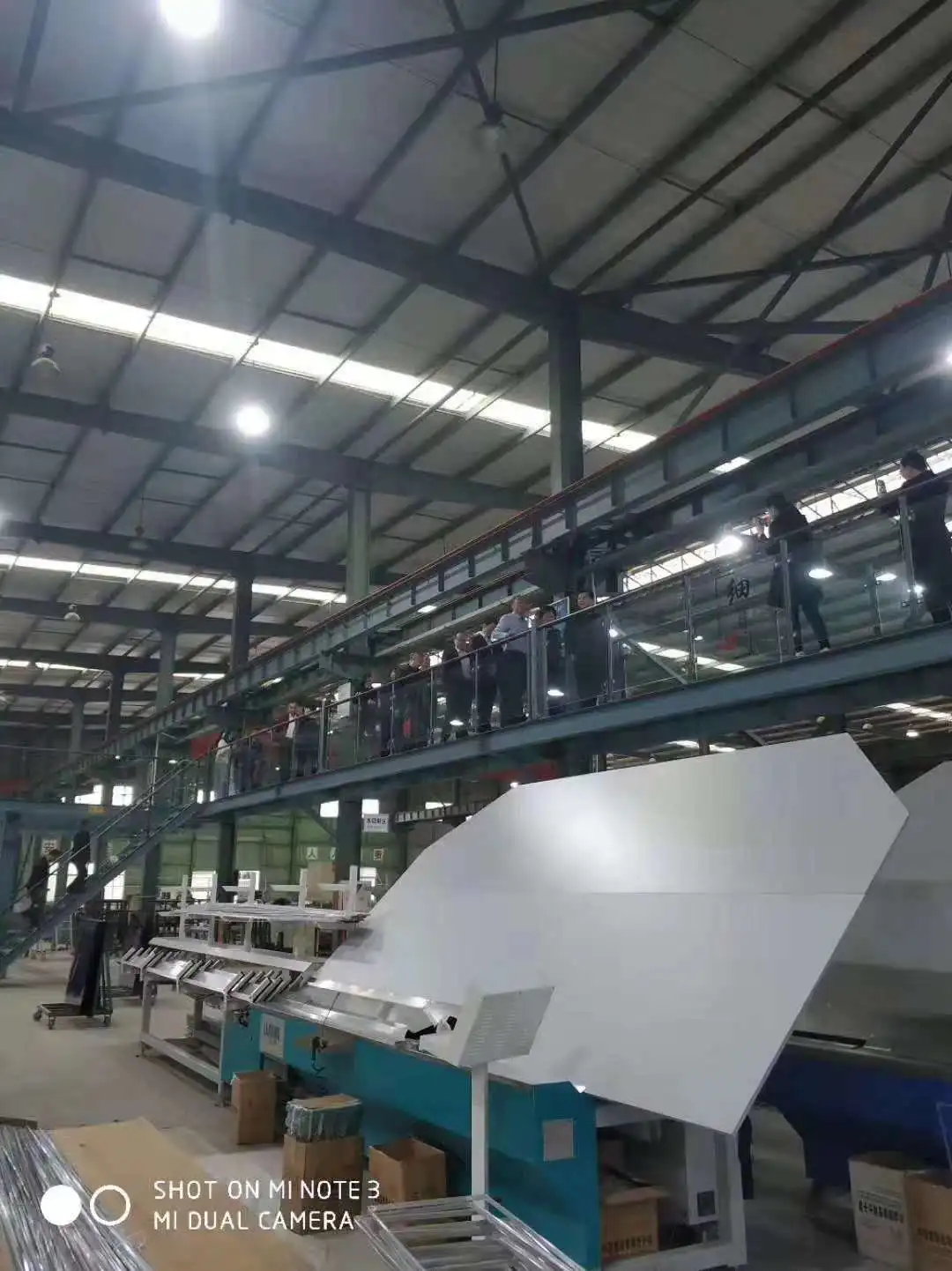

Customer Photos

Specification

Max. bending size	2000mm*2000mm
Min. bending size	250mm*200mm
Stainless steel spacer width	5.5-27mm
Dimensional error	±0.5mm
Angle error	±1º
Processing speed	17s
Air supply	≥0.65MPa
Total power	AC220/380V 50Hz 2.5KW
Dimension	10500mm2200mm2600mm
