2500mm*3500mm Vertical Glass Washing Machine Horizontal glass washer

Name: 2500mm3500mm Vertical Glass Washing Machine Horizontal glass washer
Brand: Jinan Lijiang Glass Machinery
Price: 1 USD

Buy cheap 2500mm*3500mm Vertical Glass Washing Machine Horizontal glass washer product

Brand Name : Jinan Lijiang Glass Machinery

Model Number : LJWBQJ2500

Certification : CE & ISO9000

Place of Origin : China

MOQ : 1 set

Price : Discussible

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 15 sets per month

Delivery Time : 5-8 working days

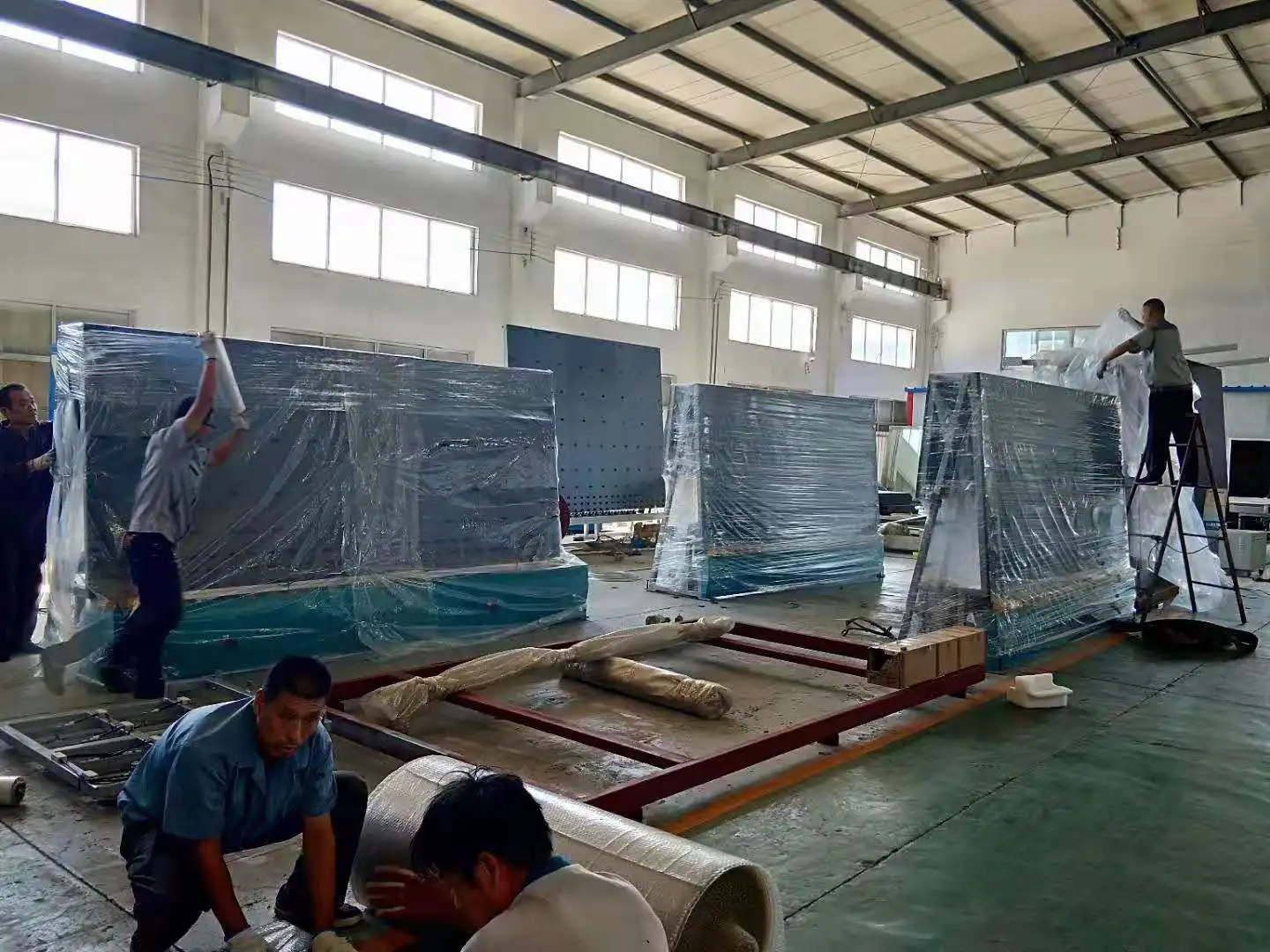

Packaging Details : Wooden Cases Package

Voltage : 380V 50HZ

Weight : 2500kg

Dimension(l*w*h) : 5800x1500x2700mm

After-sales service provided : Engineers available to service machinery overseas

Condition : New

Glass thickness : 3-15mm

Power(w) : 15kw

Warranty : 1 year

Contact Now

Glass Washing Machine Vertical Glass Washing Machine Horizontal Glass Washing Machine

Products Description

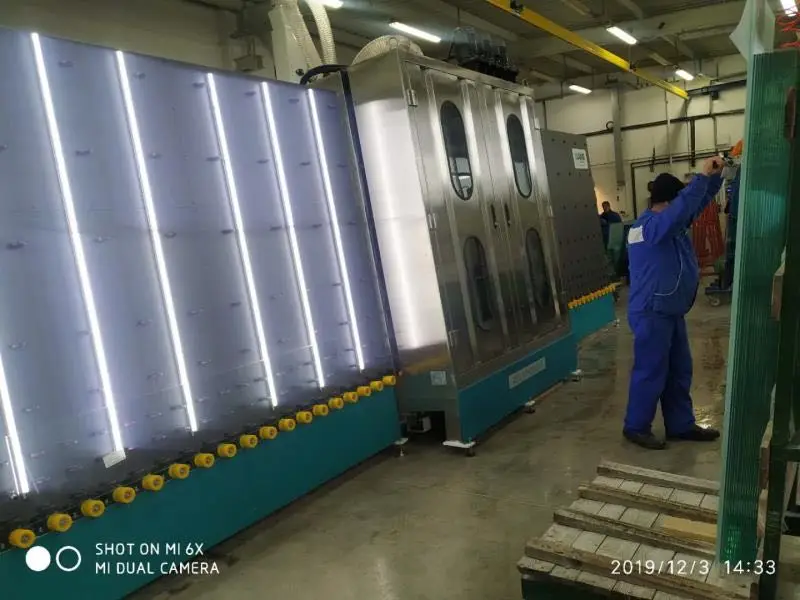

Jinn LIJIANG LJBQX2535 Insulating Glass Washing MachineLJBQX2535 insulating glass washing machine can wash max glass of 2500mm*3500mm, more large size and less size can be optional. - Self-Diagnosis system with touch screen on computer. - Stainless steel washer with 8 ( 6 ) brushes, soft brushes from MONFORTS of Germany, hard brushes automatically open when Low-E glass input. - Rotate speed of brush frequency control. (optional) - Stainless steel air knife is automatically adjustable according to glass thickness, Max thickness to 19mm - High speed cleaning ( max 14m/min), Low noise ( max 70dB), high availability working. ( 25 second /unit) - Automatic detection of Low-E glass and alarm for coating in reverse. (optional) - Structure stepped and three-layer I.G. unit available. (optional) - Precision of plate press: ±0.3mm 2500mm*3500mm Vertical Glass Washing Machine Horizontal glass washer

2500mm*3500mm Vertical Glass Washing Machine Horizontal glass washer

Advantages & Features

Benefits & Advantages

* In the washing machine ,there three pairs soft brushes all can wash low-e glass, four pairs of water spray. * The material in the washing and drying section all made by stainless steel. * The main power consumption is mostly appear in the washing and drying section of the IG line. * The air knife is float design , it always keep the right and suitable distance between the glass and air knife in the press and design section * The transfer wheel in the washing and drying section : The front and back transfer wheel are all moved, all actively transferred. No mater the glass size is big or small , it all guarantee the glass pass through smoothly. * The axle and bearing of brushes are stainless steel , that all keep the machine can washing well and live for a long time. * The who drying machine use the sound insulation design. can reduce the noise.

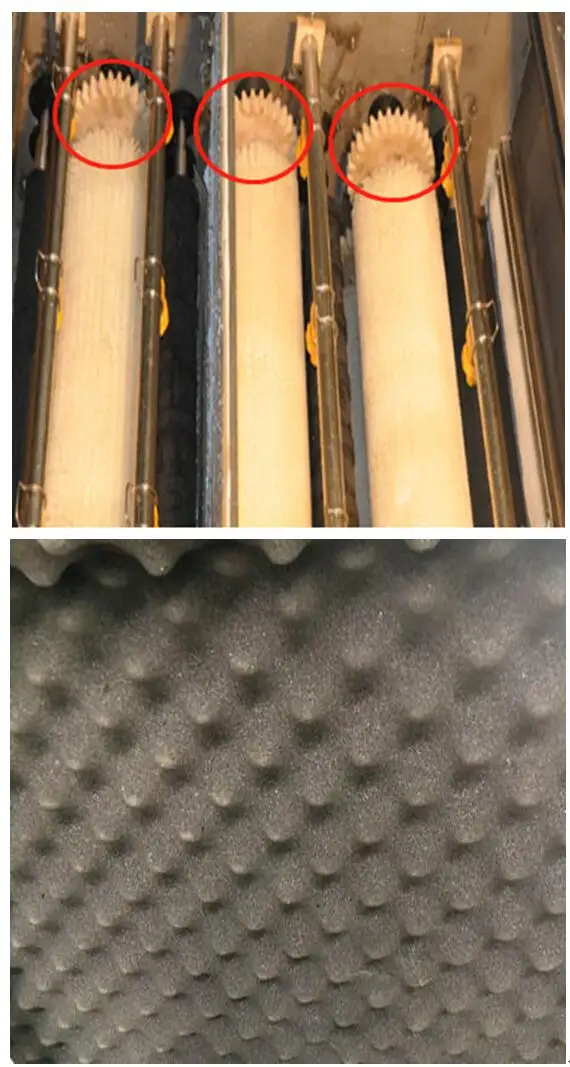

3 pairs of 0.1mm soft brushes

It has 3 brushes which are all soft brush, can wash low-e glass, flat glass, tempered glass and so on. It has a diameter of less than 0.1mm bristles, never damage glass, especially for Low-E glass.

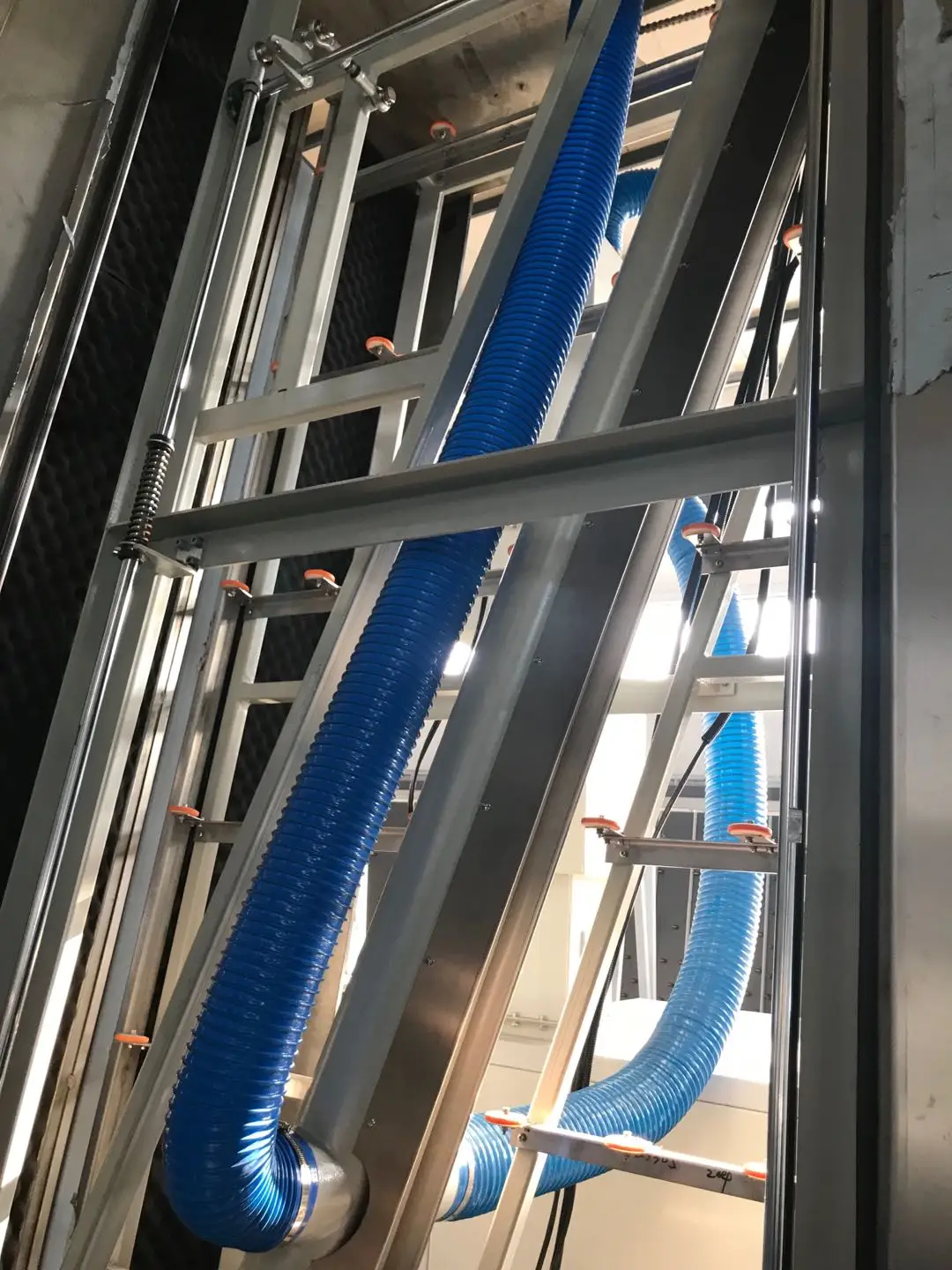

New design of air knife

The whole washing machine uses a new design of air knife to washing and drying glass, which make the distance between the glass and the air knife in a stable value, to keep the best drying effect.

The water heating system

As different countries have different water quality, in order to ensure that the glass is washes clearly enough,adoptingair heating system, to use soft water to wash glass. What’s more, using water filter system to make water recycling, save water and keep the water clear.

Aluminum Spacer Bending machine

l 1*1m spacer frame was bend around 17s.
The error of spacer frame angle is within 0.1mm.

l Can bend aluminum spacer /technoform /Alupro /thermix/
l Spacer automatically connect and cut.
l Machine automatically stop when the spacer use up.
l Support continuous bending , automatically avoid spacer connection while bending and cutting
l Automatically connect the spacer -connector

l Remote control function
l USB input function ,it can read the excel data directly
l Spare parts of all machine have ID code ,convenient for after-sale service

l Heavy duty connectors ,convenience and safety for installation and debugging
l Magnetic valve use Taiwan Airtac
l German Siemens plc control systerm
l Japan Fuji servo control system

l 12 storage spacer units (option)
l Swisspacer/ Stainless Steel /Allmetal Stainless Steel /option)
(Stainless steel and warm edge spacer can not exist at one time )
l Drill hole for gas filling(option)
l Spacer inkjet printing ,various color is available for company logo or production date(option)
l Laber printing (option)
l Scanner scan two-dimension code ,bar code (option)
l Separate Pressing Wheel for arc frame, more accurate than the bending tool
Especially for Hexagon and Octagon frame (optional )
l ERP (optional)


Remark : Bending tool
*For rectangle frame there have three size (6A/9A/12A)was complimentary
Other size need pay extra 42$/per size
* For Circle ,Hexagon and Octagon frame , 300$/per size

The anti-noise system

Using Europe's advanced anti-noise system to create a good working environment for employees. The noise can be controlled below 90 decibels by using nylon gear and sponges.

Main Technical Parameter

Item.	Spec.
Max washing size	2000mm*2500mm
Min washing size	450mm*300mm
Glass washing speed	2-10m/min
Glass conveyor speed	45m/min
Washing brushes	3 pairs of soft brushes with 0.1mm hair
Water supply	Water consumption:0.5t/h conductivity:40μs/cm
Air supply	Flow: 0.8m/min
Air pressure	≥0.8MPa
Total power	18kw
Height	3100mm
