2.5m Vertical Insulating Glass Laminating Machine Automatic

Name: 25m Vertical Insulating Glass Laminating Machine Automatic
Brand: LIJIANG GLASS
Price: 45 USD

Buy cheap 2.5m Vertical Insulating Glass Laminating Machine Automatic product

Brand Name : LIJIANG GLASS

Model Number : LJTJ2025

Certification : CE

Place of Origin : CHINA

MOQ : ONE set

Price : US$45,000 a piece

Payment Terms : L/C, T/T

Supply Ability : 3 units per month

Delivery Time : 17 working days

Packaging Details : Wooden crates and containers

Voltage : 380V or Could be request

Power : 12KW

Dimension(L*W*H) : 8000mm*1500mm*2700mm

Weight : 3700 kg

Modle : LJTJ2025

Brand : LIJIANG GLASS

Contact Now

Automatic Sealing Robot 2.5m Vertical Insulating Glass Laminating Machine
High Efficiency LJTJ2025 Automatic Sealing Robot 2.5m Vertical Insulating Glass Laminating Machine Could be Connected

Products Description

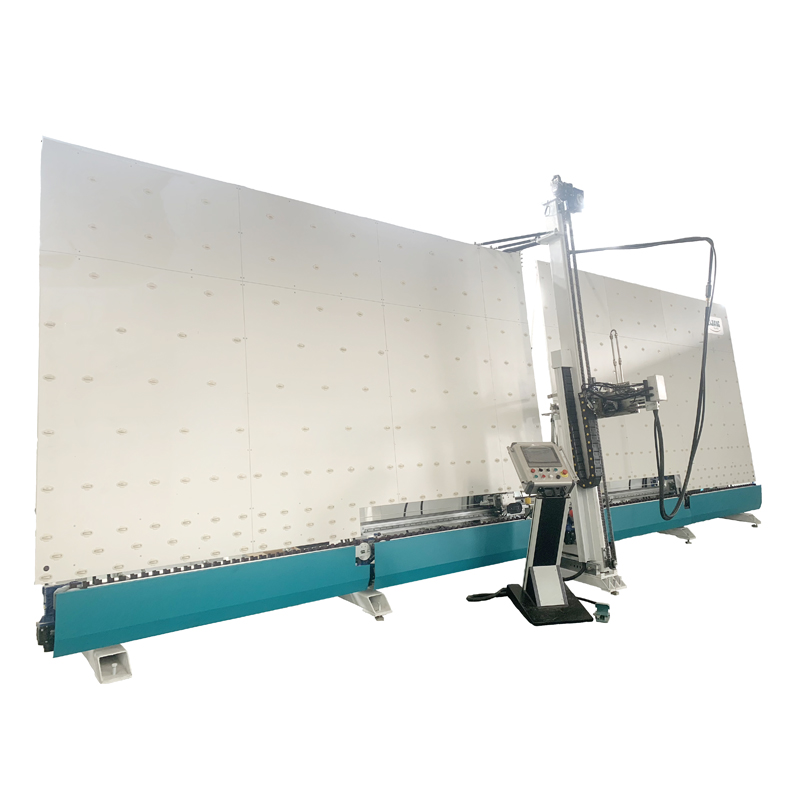

Automatic Vertical Insulating Glass Sealing Robot

Jinan LIJIANG Glass Automatic Insulating Glass Sealant Sealing Robot Machine can apply the mixed sealant evenly to the outer channel of the insulating glass through the servo mechanism to help the sealing and bonding performance of the insulating glass.Automatic Vertical Insulating Glass Sealing Robot Machine could apply the mixed sealant evenly to the outer channel of the insulating glass through the servo mechanism to help the sealing and bonding performance of the insulating glass.

Advantages & Features

2.5m Vertical Insulating Glass Laminating Machine Automatic

Main Technical Parameter

Item.	Spec.
Product name	Vertical Insulating Glass Sealing Robot LJTJ2540
Max.glass size	2500*4000mm
Min.glass size	400mm*300mm
Glass thickness	12-56mm
Working speed	5-40m/min
Air pressure	0.6-0.8MPa
Squeeze pressure	<350kg/m³
Overall dimension	8700mm2500mm3500mm
Weight	5000Kg

NAME	ORIGIN	BRAND
Servo motor	Taiwan	TAIDA
PLC	Taiwan	TAIDA
Pneumatic component	Taiwan	AAIRTAC
Low pressure electricity	Germany	SIEMENS
Circuit breaker	Germany	SIEMENS
Sensor switch	Korea	AUTONICS
Approach switch	Korea	AUTONICS
Limit switch	Taiwan	TEND
Connector	Germany	SIEMENS
Frequency converter	France	SCHNEIDER
Main Button	France	SCHNEIDER
Intermediate relay	Japan	OMRON
