Multifunctional Raw Combined Vertical Hollow Glass Washing Machine

Name: Multifunctional Raw Combined Vertical Hollow Glass Washing Machine
Brand: LIJIANG GLASS
Price: 35 USD

Buy cheap Multifunctional Raw Combined Vertical Hollow Glass Washing Machine product

Brand Name : LIJIANG GLASS

Model Number : LJZW2020A

Certification : CE

Place of Origin : CHINA

MOQ : ONE

Price : 35,000 USD to 34,000 USD

Payment Terms : L/C, T/T

Supply Ability : 10 units per month

Delivery Time : 10 working days

Packaging Details : Wooden boxes and containers

Voltage : 380V 50HZ 3P

Power : 2.5KW

Dimension(L*W*H) : 10500mm*2200mm*2500mm

Weight : 1580 kg

Spacer specification : 5.5mm - 27mm

Contact Now

Multifunctional combined vertical hollow glass raw washing machine

Product Description

Multifunctional Raw Combined Vertical Hollow Glass Washing Machine

Insulating Glass Washing Machine

LJBQX2535 insulating glass washing machine can wash max glass of 2500mm*3500mm, more large size and less size can be optional. - Self-Diagnosis system with touch screen on computer. - Stainless steel washer with 8 ( 6 ) brushes, soft brushes from MONFORTS of Germany, hard brushes automatically open when Low-E glass input. - Rotate speed of brush frequency control. (optional) - Stainless steel air knife is automatically adjustable according to glass thickness, Max thickness to 19mm - High speed cleaning ( max 14m/min), Low noise ( max 70dB), high availability working. ( 25 second /unit) - Automatic detection of Low-E glass and alarm for coating in reverse. (optional) - Structure stepped and three-layer I.G. unit available. (optional) - Precision of plate press: ±0.3mm

Detailed Images

Benefits & Advantages

Stainless steel water contact parts;
Suitable for cleaning and drying of flat glass ;
The top washing section height can be adjusted;
Three pairs of high quality brushes and air knives;
Processing speed can be adjusted by the step less regulator;
This special design makes the glass clean and dry even at the corner position.
Top open for 1.5m machine for option.

Stainless steel

The vertical glass washing machine uses stainless steel material, the screws are used China famous brand, stainless steel material. The water tupes are used water proof design.

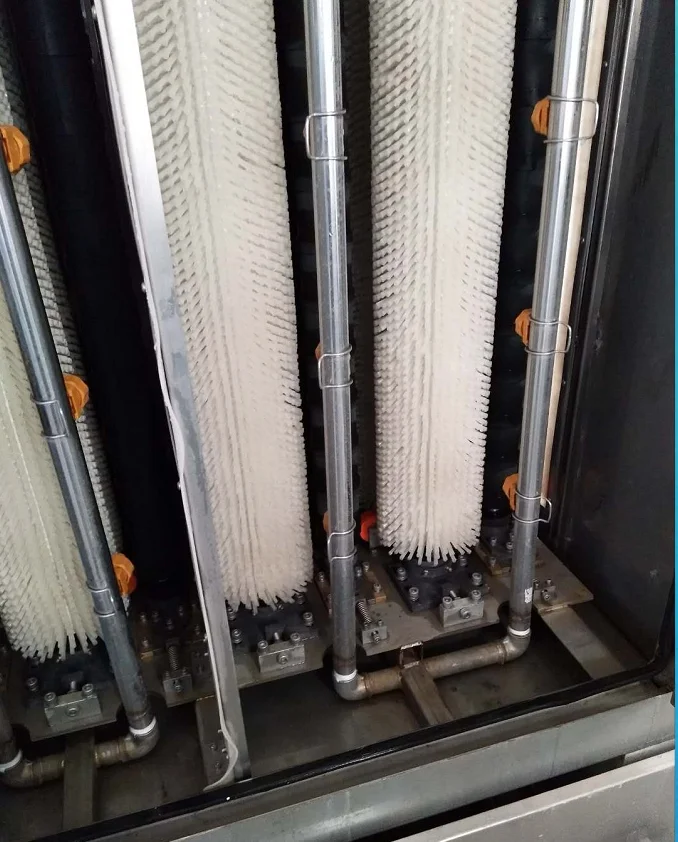

6 pieces of soft brushes

The vertical glass washing machine uses 6 pieces of soft brushes, which can wash low-e glass well, do not damaged the low-e film.

Adjustable air knife

The vertical glass washing machine uses new air knife design, which can save a lot of energy, keep good washing result, the powerful wheels can keep different sizes of glasses transfer quickly. Fast washing speed.

Main technical parameter

Item.	Spec.
Dimension(LWH)	630015002400mm
Max glass size	2000*2500mm
Min glass size	280*400mm
Glass thickness	3 - 18mm
Washing speed	summer: 8 - 10m, winter: 6 - 7m
Pane glass thickness	3-18mm
Washing speed	0-18m/min
Work pressure	0.5~0.8MPa
Power	18.5kw
Height	3100mm
