Automatic Spacer High Frequency Welding Aluminum Frame Bending Machine Super Speed

Name: Automatic Spacer High Frequency Welding Aluminum Frame Bending Machine Super Speed
Brand: Jinan LIJIANG Glass
Price: 1 USD

Brand Name : Jinan LIJIANG Glass

Certification : CE & ISO9000

Place of Origin : Wooden Cases Package and Container Transfer

MOQ : 1 set

Price : Negotiable Price

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 15 sets per month

Delivery Time : 15 Working Days

Packaging Details : Wooden Cases Package and Container Transfer

Name : Automatic aluminum bending machine

Function : Folding aluminum bar

Model : LJZW2020A

Max.bending size : 2000 mm*2000 mm (2500 mm*2500 mm)

Min.bending size : 250 mm*200 mm

Aluminum spacer width : 5.5-27 mm

Dimensional error : ±0.5mm

Processing speed : ≤26s

Contact Now

Super Speed Automatic Spacer High Frequency Welding Aluminum Frame Bending Machine used for Insulating Glass Industry

Product Description

Automatic Spacer High Frequency Welding Aluminum Frame Bending Machine Super Speed

LJZW2020 Automatic Aluminum Spacer Bar Bending Machine

Jinan LIJIANG Glass Automatic Spacer Bar Bending Machine is a distinct tools for making aluminum frames of insulating glass, which replaces the normal fabrication technology. Automatic spacer bending computer can make a range of convex polygonal aluminum frames through one aluminum strip in one time, therefore strengthening the power of the aluminum frame, making the sealing impact of the insulating glass extra better.

Specification

Item.	Spec.
Max. bending size	2000mm*2000mm
Min. bending size	250mm*200mm
Aluminum spacer width	5.5-27mm
Dimensional error	±0.5mm
Angle error	±1º
Processing speed	17s
Air supply	≥0.65MPa
Total power	AC220/380V 50Hz 2.5KW
Dimension	10500mm2200mm2600mm

NAME	BRAND	NAME	BRAND
PLC	GERMAN SIEMENS	Triplet	Taiwan AIRTAC
Low voltage electrical apparatus	GERMAN SIEMENS	Cylinder	Taiwan AIRTAC
Servo motor	GERMAN SIEMENS	Solenoid valve	Taiwan AIRTAC
Servo driver	GERMAN SIEMENS	Switch power	Taiwan TEND
Relay	JAPAN OMRON	TOUCH SCREEN	Taiwan WEINVIEW
Sensor	KOREA AUTONICS	GUIDE	Taiwan TBI

Advantages & Features

Benefits & Advantages

•Siemens 1200 PLC manipulate device with speedy working velocity
•4 businesses of storages (2 or 12 companies of storages can be optional)
•Automatically reduce and feed aluminum spacers
•Automatically keep away from the pins whilst bending and reducing
•Bend spacer frames always
•Aluminum spacers are accessible in sizes of 6A-27A
•Different bending equipment for distinctive sizes of spacers
•Pause and Reset machine for coping with gear disasters
•Bend aluminum spacer, easy stainless steel, heat spacer
•Connect to ERP gadget (Optional)
•USB enter function, examine the excel layout file immediately
•Automatically drill holes for filling argon gasoline (Optional)
•Spacer printing code feature (Optional) •Printing label sticky label characteristic (Optional)
•Bending form frame. Using circle wheel machine to bend circle body or body with circle corners. Min R60, Max R150, spacer sizes: 6A – 16A). Different sizes of aluminum bars require one-of-a-kind measurement tools(Optional)

The Unique ID Codes

All tools spare components have ID codes, which are matched with the ERP device of Lijiang Spare Parts Warehouse. When there is an after-sales problem, the faulty spare components can be observed immediately and changed quickly.

The Printing Labels and Stickers

The spacer bending desktop is outfitted with the characteristic of printing labels and stickers (optional), which can be effortlessly removed, which is handy for mass manufacturing of bending aluminum strips.

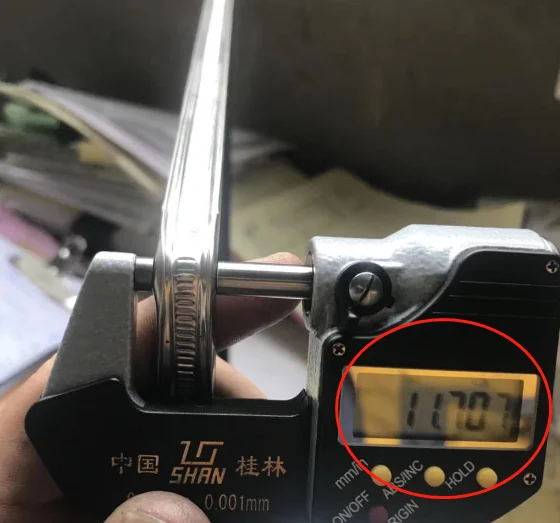

The Accurate Bending Effect

The nook error of the Aluminum Spacer Bar Bending Machine is much less than 0.1mm, making sure that it meets the realistic software necessities of the hole glass aluminum strip interval.

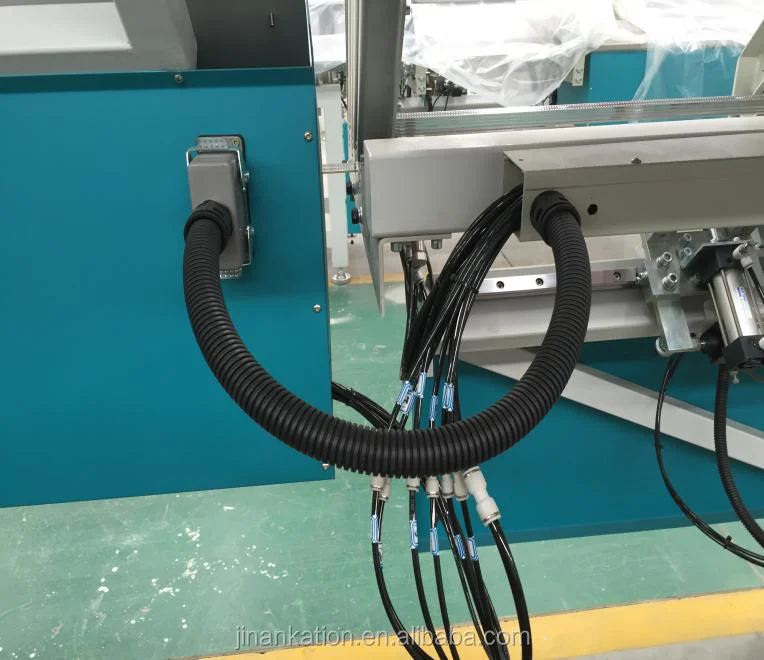

The Safety Components

The heavy-duty connector section of the aluminum spacer bar bending machine, the electrical wiring is sincerely and orderly marked, and the set up and debugging are handy and safe.
