Insulating Glass Two Component Sealant Machine Sealing Robot Hot Melt Glue Machine

Name: Insulating Glass Two Component Sealant Machine Sealing Robot Hot Melt Glue Machine
Brand: Jinan Lijiang Glass Machinery
Price: 1 USD

Brand Name : Jinan Lijiang Glass Machinery

Model Number : LJTJ2025 insulating glass sealing robot machine

Certification : CE & ISO9000

Place of Origin : Jinan City, Shandong Province, China

MOQ : 1 set

Price : Negotiated Price

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100 sets per month

Delivery Time : 5-8 working days

Packaging Details : Wooden Cases Package

Max.glass size : 2000*2500mm

Min.glass size : 170mm*400mm

Glass thickness : 12-56mm

Working speed : 5-40m/min

Air pressure : 0.6-0.8MPa

Squeeze pressure : <350kg/m3

Overall dimension : 8000*1500*2700mm/8000*1500*3500m

Voltage power : 380V 12kw 50Hz

Contact Now

2540 Automatic Insulating Glass Two-component Sealant Machine Sealing Robot Hot Melt Glue Machine

Product Description

Insulating Glass Two Component Sealant Machine Sealing Robot Hot Melt Glue Machine

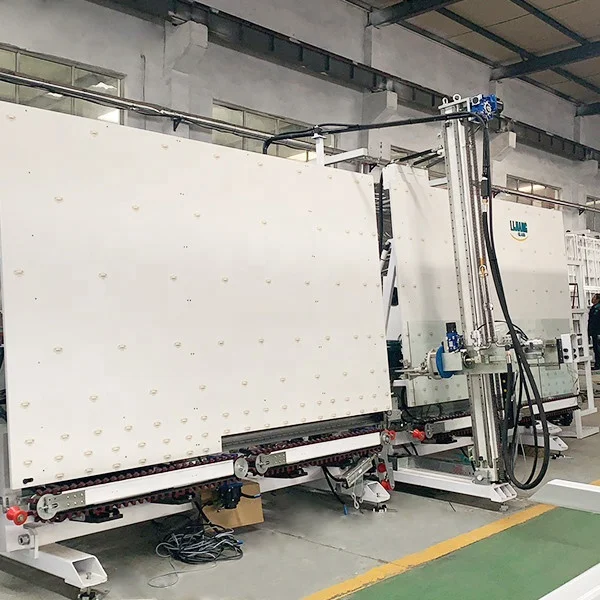

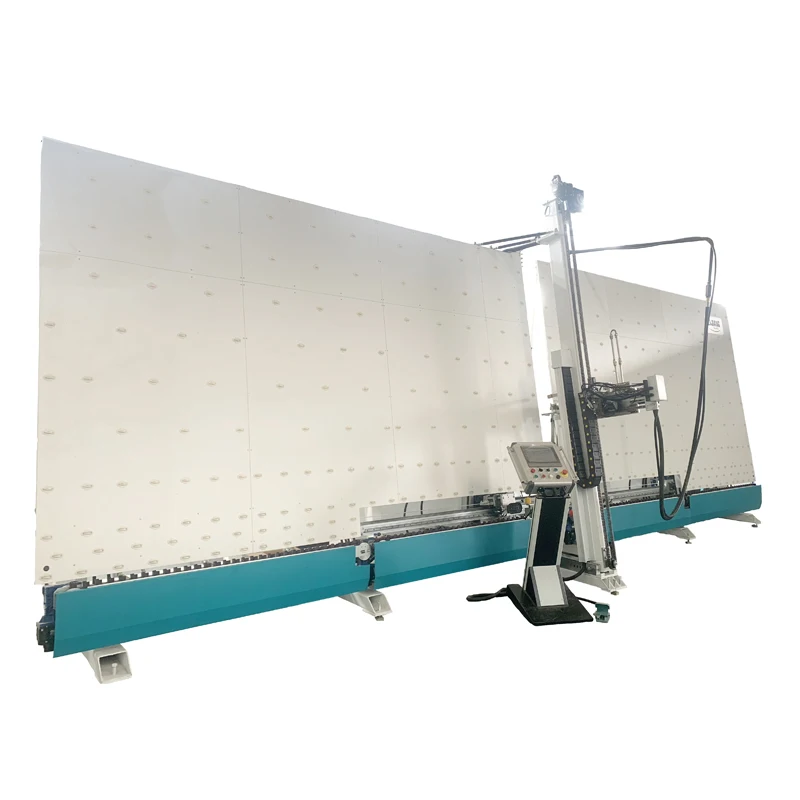

Automatic Vertical Insulating Glass Sealing Robot

Jinan LIJIANG Glass Automatic Insulating Glass Sealant Sealing Machine can follow the combined sealant evenly to the outer channel of the insulating glass via the servo mechanism to assist the sealing and bonding overall performance of the insulating glass. Automatic Vertical Insulating Glass Sealing Robot can practice the combined sealant evenly to the outer channel of the insulating glass via the servo mechanism to assist the sealing and bonding overall performance of the insulating glass.

Advantages & Features

Benefits & Advantages

* Min & Max glass sizes can be elective
 * Adopt eight servo motors
 * Adopt Japan ANCHUAN servo manage machine with steady overall performance
 * Automaticallymeasure glass size, glue depth, and glue pace with linear adjustment
 * Adopt timing belt to preserve clean bring with correct role
 * Spares are produced with excessive standardization and excessive precision, make certain the computer can be used with long-term working
 * The glass corners are full except air bubbles, easy surface.
 * Full computerized and high-efficiency laptop
 * New scraper design, mainly for making teach IG with very even aspects and corners, besides any bubbles.
 * Automatically restore glass corners with lovely floor
 * Smooth deliver except scratch and air pollution
 * Single-function components are geared up with guide functions, effortless adjustment
 * Shaped IG devices (Optional)
 * Stepped IG gadgets with 4 aspects (Optional)
 * Double and Triple IG gadgets

The Smooth Glue Surface

After making use of glue, It will make sure that the corners of the glass are full, except bubbles and different impurities, and the glue floor is so smooth.

The High-precision Servo Control System

It adopts Japanese Yaskawa servo manage device with clear wiring diagram to make sure secure usual overall performance of the equipment.

The Glass Coating

Automatically measure glass size, glue depth and glue pace via linear adjustment to make certain the steadiness of insulating glass coating quality.

Glue Pump A and Glue Pump B

Equipped with a single A thing and a single B component, combined and glued. When making use of glue, glue pump A and glue pump B are routinely combined to understand computerized proportioning.

Main Technical Parameter

Item.	Spec.
Product name	Vertical Insulating Glass Sealing Robot LJTJ2025
Max.glass size	2000*2500mm
Min.glass size	170mm*400mm
Glass thickness	12-56mm
Working speed	5-40m/min
Air pressure	0.6-0.8MPa
Squeeze pressure	<350kg/m³

NAME	ORIGIN	BRAND
Servo motor	Taiwan	TAIDA
PLC	Taiwan	TAIDA
Pneumatic component	Taiwan	AAIRTAC
Low pressure electricity	Germany	SIEMENS
Circuit breaker	Germany	SIEMENS
Sensor switch	Korea	AUTONICS
Approach switch	Korea	AUTONICS
Limit switch	Taiwan	TEND
Connector	Germany	SIEMENS
Frequency converter	France	SCHNEIDER
Main Button	France	SCHNEIDER
Intermediate relay	Japan	OMRON
