Horizontal Plate Glass Washing And Drying Machine Private Furniture Door And Window

Brand Name : Jinan LIJIANG Glass

Model Number : KTWBQJ1800-A

Certification : CE & ISO9000

Place of Origin : Jinan City, Shandong Province, China

MOQ : 1 Set

Price : Negotiable Price

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram and so on.

Supply Ability : 15 sets per month

Delivery Time : 15 Working Days

Packaging Details : Wooden Cases Package and Container Transfer

Name : Horizontal Glass Washing Machine

Advantage : Soft brush for Low-E glass washing

Max. glass width : 2600 mm

Min glass specification : 350*350 mm

Glass thickness : 3--25 mm

Washing speed range : glass thickness within 3-19 mm Vmax=1--12 m/min

Function 1 : New type of Air knife drying

Function 2 : Solid rubber roller

Contact Now

Automatic Horizontal Plate Glass Washing and Drying Machine Private Furniture Door and Window Glass Washing Equipment
Product Description
Horizontal Plate Glass Washing And Drying Machine Private Furniture Door And Window

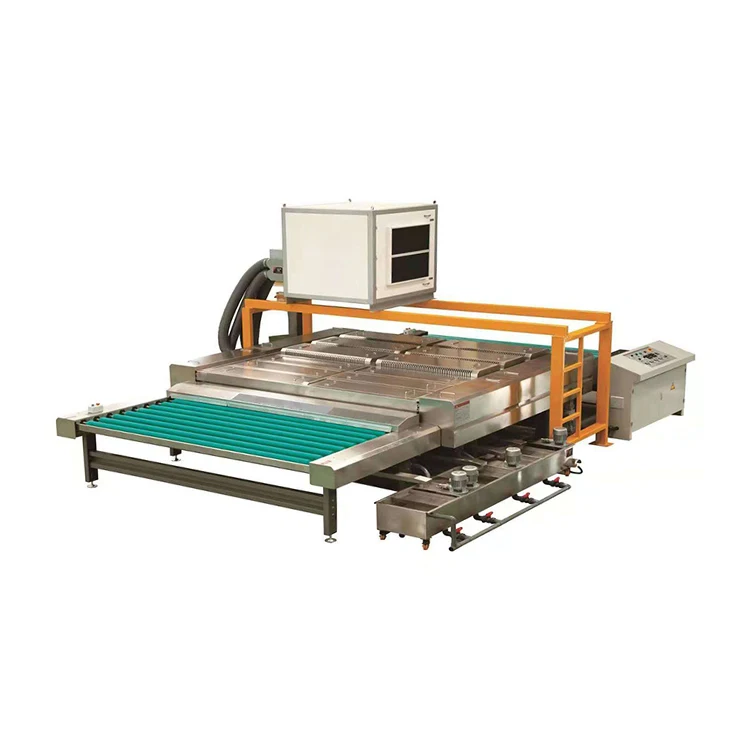

Automatic Horizontal Glass Washing and Drying Machine
Jinan LIJIANG Horizontal Glass Washing and Drying Machine LJWBQJ1800-A used for cleansing and drying the top and decreasing surfaces of normal drift glass and excessive excellent Low-E glass, it is composed of the incoming segment, cleansing air-drying section, and outgoing segment. This Economic kind of washer usually using for single glass or insulating glass processing of window and door filed.
Horizontal Plate Glass Washing And Drying Machine Private Furniture Door And Window
Horizontal Plate Glass Washing And Drying Machine Private Furniture Door And Window
Advantages & Features
Horizontal Plate Glass Washing And Drying Machine Private Furniture Door And Window
Horizontal Plate Glass Washing And Drying Machine Private Furniture Door And Window
Horizontal Plate Glass Washing And Drying Machine Private Furniture Door And Window
Horizontal Plate Glass Washing And Drying Machine Private Furniture Door And Window
Horizontal Plate Glass Washing And Drying Machine Private Furniture Door And Window
Horizontal Plate Glass Washing And Drying Machine Private Furniture Door And Window
Horizontal Plate Glass Washing And Drying Machine Private Furniture Door And Window

Structural Characteristics

1. Aluminum alloy assembled structure, no scrap concept, everlasting use,high efficiency, power saving 70% efficiency;

2. The relaxation of the sheet metal components are sprayed with superior mechanical paint or powder;

3. The rubber curler is made of vulcanized rubber with a stainless metal shaft;

4. The washing section in contact with water is made of stainless steel;

5. Cleaning department, wind team of workers average lift, the most lift:350mm, easy to smooth and maintain;

6. Three pairs of brush(Ø150mm)Stainless metal shaft configuration (Low-E glass, normally covered glass, and sunshine covered glass can be washed except negative the covered surface);

7. Two pairs of exclusive stainless metal aluminum alloy air knife configuration, robust wind, appropriate air drying effect, with the heating system(with temperature manipulate the device, non-obligatory opening, and closing);

8. The fan is geared up with an air filter in the air inlet chamber, with giant air extent and accurate air drying effect, The entire fan container is mounted in the top section of the workshop, with the air filter display screen on the aspect for handy inspection and cleaning;

9. Main pressure for equipment transmission, frequency control, digital display, the rotation of the brush curler in the washing area is pushed via impartial belts of the top and decrease motors respectively, the frequency conversion adjustment pace is stable, the carrier existence is long, realizes the cleansing excessive request unique glass;

10. Mechanical button control, cleansing computer digital display, effortless to operate, effortless to operate, effortless to maintain;

11. Washing desktop water tank outside, handy water tank cleaning, water change, check, so that the washing computing device cleansing effect is cleaner.

12. Optional with PLC control, contact display.It is handy for people to function and maintain, and can be related to all producers of part grinding machines except gap. (purchase one at a time if necessary)

Horizontal Plate Glass Washing And Drying Machine Private Furniture Door And Window

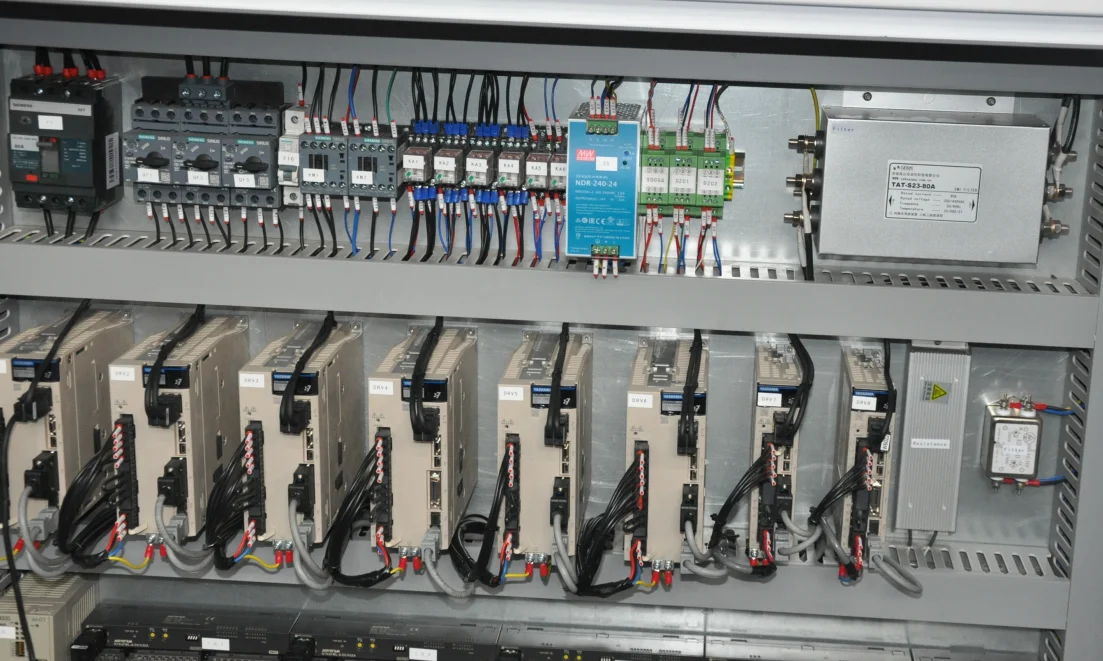

The Imported Components
Using imported frequency converter and PLC manipulate the system, the velocity of getting into and exiting the glass can be adjusted freely, and the processing of clear glass can be maintained at a consistent pace for a lengthy time.
Horizontal Plate Glass Washing And Drying Machine Private Furniture Door And Window

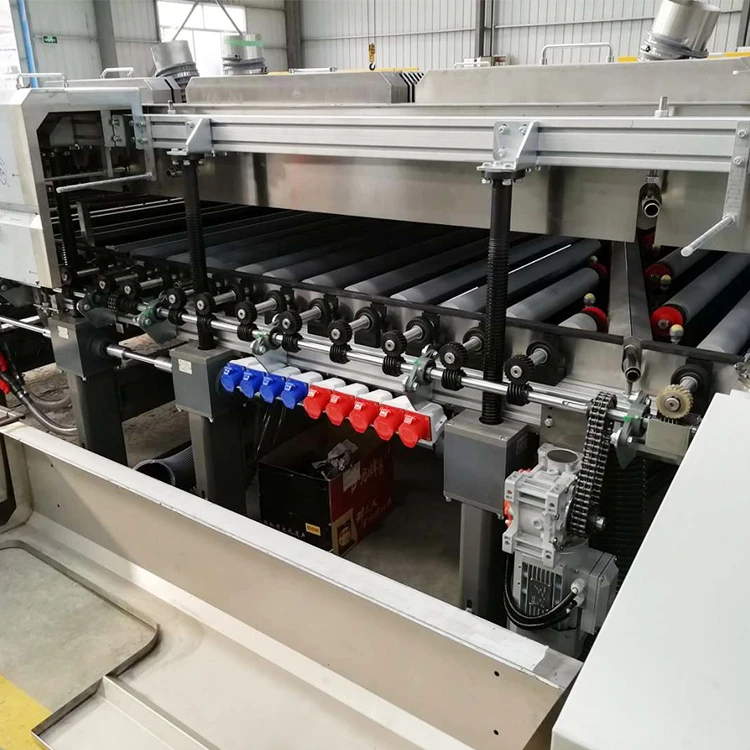

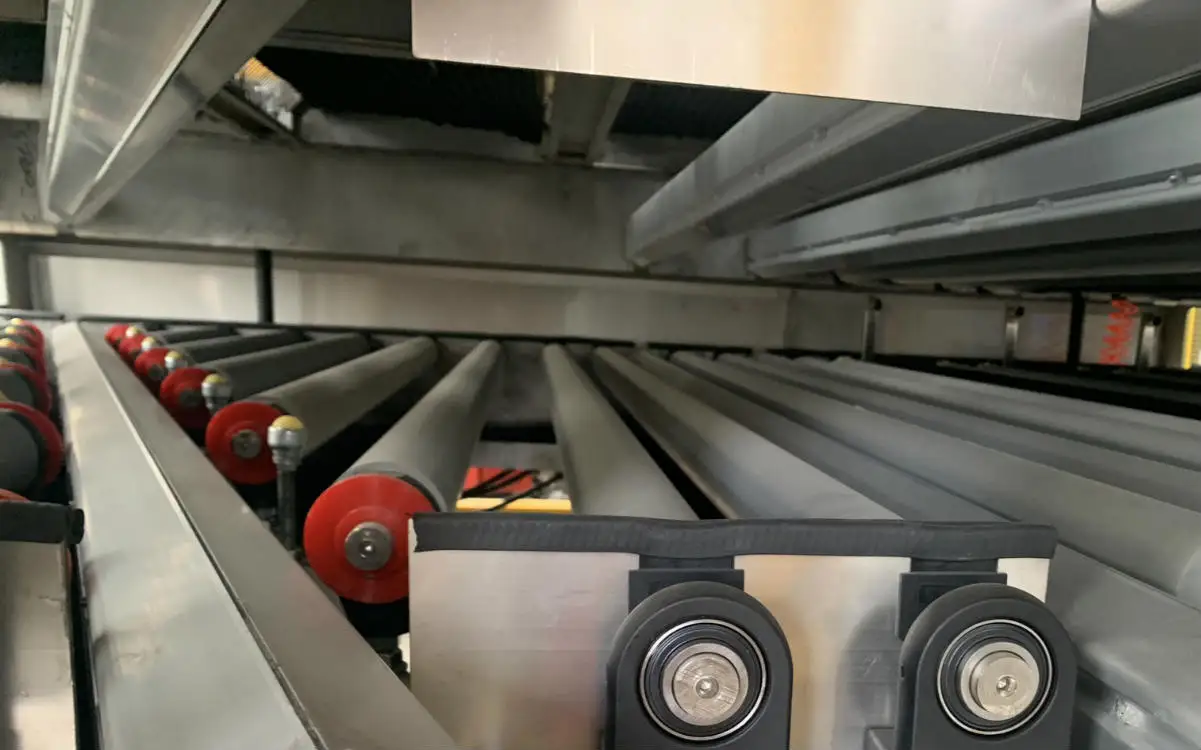

The 3 Pairs of Rubber Rollers
three pairs of rubber rollers are used to press the glass sheets, which can acquire the impact of growing the urgent power in sequence, and the glass thickness tolerance is smaller than others suppliers.
Horizontal Plate Glass Washing And Drying Machine Private Furniture Door And Window

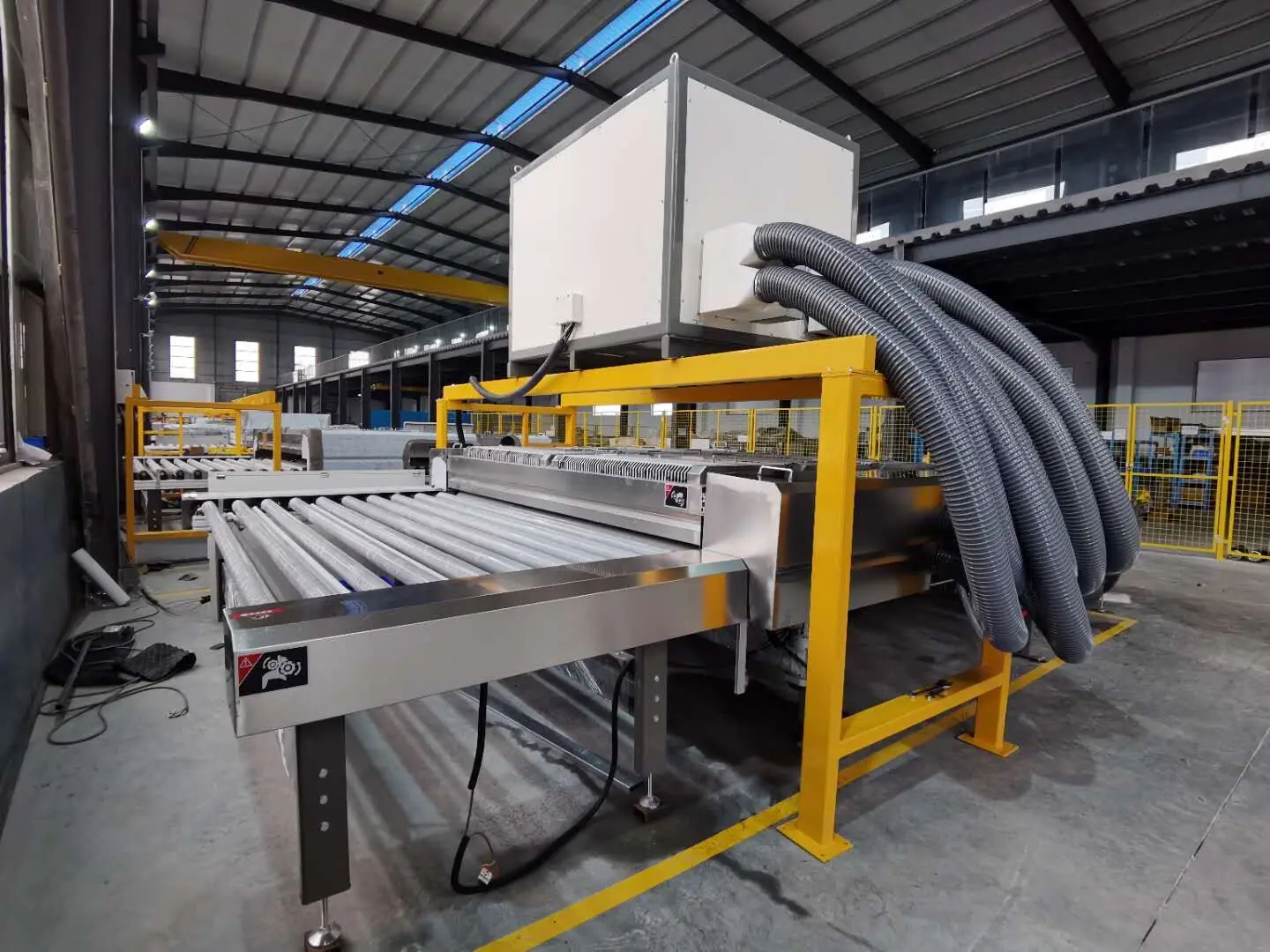

The High-power Fan
The washing and drying tools ought to be geared up with a high-power fan, the drying impact is better, and the cleansing impact of the glass is totally guaranteed.
Horizontal Plate Glass Washing And Drying Machine Private Furniture Door And Window

The Gradient Pressing Method
According to the route from the glass enter to the output, the glass is regularly pressed via the usage of a gradient urgent method.The urgent impact is higher than different suppliers.
Main Technical Parameter
Item.
Spec.
Maximum glass width
2500mm (effective maximum: 2650mm)
Minimum glass specification
400mm×400mm (limited to single row on left and right sides)
Glass thickness
3mm-25mm (digital display)
Speed range
glass thickness within 3-25mm Vmax=1-12m/min
Main drive, brush speed regulation method
frequency control
Table height
900±25mm
Total power
42KW(water-bearing wind heating: 15KW)
Water source
self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment
shall be provided by the buyer)
Power source
380V 50Hz
Dimensions (length × width × height)
approximately 6260*4800*3100mm
Weight
3940kgs
