Vertical Automatic Four Seasons Usable Glass Washing And Drying Machine Super Fast

Product Categories
Jinan Lijiang Automation Equipment Co., Ltd.
Contact Now

Vertical Automatic Four Seasons Usable Glass Washing And Drying Machine Super Fast

Brand Name : LIJIANG GLASS

Model Number : CP-2500A

Certification : CE

Place of Origin : CHINA

MOQ : 1 set

Price : 35,000 USD per unit

Payment Terms : L/C, T/T

Supply Ability : 10 units per month

Delivery Time : 7 working days

Packaging Details : container

Power : 31 kw

Dimension(L*W*H) : 6260*4800*3100 mm

Weight : 3940 kg

Air pressure : ≥0.8MPa

Contact Now

Vertical automatic four seasons usable glass washing and drying machine Super fast cleaning

Glass washing machine technical parameters

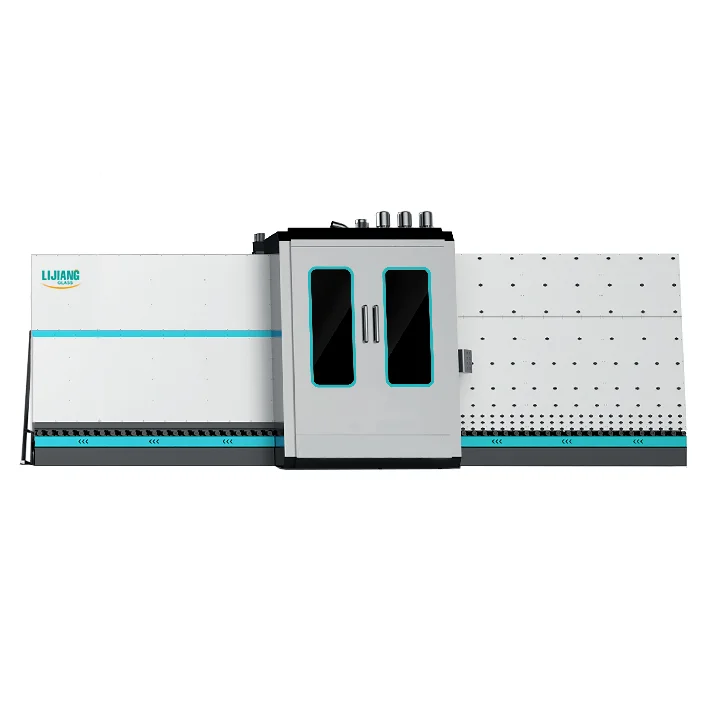

glass washing machine CP-2500A used for cleaning and drying the upper and lower surfaces of ordinary plate glass and high quality low-e glass,it is composed of incoming segment, cleaning air-drying segment and outgoing segment.

Vertical Automatic Four Seasons Usable Glass Washing And Drying Machine Super Fast

Main feature:

• Using 6 pieces of soft brushes with 0.1mm soft hair, can wash low-e glass

• Pre-washing (Optional)

• New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted

by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure

that each screw is not loose, and avoid the resonance of the air knife.

• The air knife can automatically adjust the width of the air knife according to the thickness

• The operation box with washing speed display, can accurately display washing speed (8-10m)

• Water tank automatic temperature control, water replenishing system

• European silencer system

• Stainless steel material

1. Materials

The whole washing and drying section adopt 304 stainless steel, including the plate and interior spare parts.

Vertical Automatic Four Seasons Usable Glass Washing And Drying Machine Super Fast

The thickness plate can up to 4mm and the interior plate can be 8mm.The equipment performance is better and service life is much longer.

Vertical Automatic Four Seasons Usable Glass Washing And Drying Machine Super Fast

Technical data:

Max.glass size(Optional) 2500*3500mm
Min.glass size 280*450mm
Glass thickness 3-15mm
Glass washing speed 2-10m/min
Glass conveyor speed 15m/min
Washing brushes 3 pairs
Water supply Water consumption:0.5t/h conductivity:40μs/cm
Air supply Flow: 0.8m/min
Air pressure ≥0.8MPa
Dimensions approximately 6260*4800*3100
Weight 3940kg
Total power 3P 31KW

1. There is the Low-e glass sensor in the washing machine
This sensoris installed before washing machine. It could automatically recognize Low-e glass surface fast and precisely, preventing the glass from dropping Low-e surface.
2. The washing machine uses six soft (Low-e) brushes with the 01mm diameter only. It has 6 brushes which are all soft brush, can wash low-e glass, flat glass, tempered glass and so on. It has a diameter of less than 0.1mm bristles, never damage glass, especially for low-e glass.
3. Using Europe's advanced anti-noise system to create a good working environment for employees. The noise can be controlled below 90 decibels by using nylon gear and sponges.
Vertical Automatic Four Seasons Usable Glass Washing And Drying Machine Super Fast
