Portable Aluminum Spacer Bending Machine For Ig Processing Insulated Glass

Name: Portable Aluminum Spacer Bending Machine For Ig Processing Insulated Glass
Brand: LIJIANG
Price: 35 USD

Buy cheap Portable Aluminum Spacer Bending Machine For Ig Processing Insulated Glass product

Brand Name : LIJIANG

Model Number : LJZW2020A

Certification : CE

Place of Origin : CHINA

MOQ : 1 set

Price : $35,000 each

Payment Terms : L/C, T/T

Supply Ability : 5 units per month

Delivery Time : 14 days

Packaging Details : Wooden boxes and containers

Power : 2.5kw

Voltage : 220v/380v

Weight : 1200kg

Color : Green

Min glass size : 250*200mm

PLC : Siemens Brand

Contact Now

LIJIANG production line adopts the latest technology, its main purpose is to create high-end quality, to provide customers with the latest production technology, improve production efficiency, save production costs and produce maximum benefits. Now LIJIANG mainly has two kinds of IG line with different two different technologies. One (Picture 1) uses transfer wheels to transport glass, and the other (Picture 2) is a new technology that uses air-floating technology to transport glass. This new technology is to prevent the glass from being contaminated by wheels and leaving traces, so new technology is used to improve the IG production’s high quality.

Portable Aluminum Spacer Bending Machine For Ig Processing Insulated Glass

1.Application

Material rack can be placed at the same time four specifications of aluminum bar, from the outside and inside are respectively 6A,9A,12A,12A above. The innermost group of feed tank is the common feed tank. The plug should be inserted into the middle position, and the plug should be kept level with the aluminum strip or droop slightly, not upwarped, otherwise it will affect the receiving material.

2. Equipment details

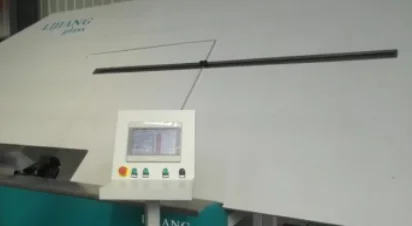

Adjust the touch screen to the rectangular working mode, press the right arrow to indicate the transmission of the aluminum bar inside the machine, and press the "refueling" button at the left end of the head with the right hand. After the fixed cylinder of the feed frame is released, the left hand pulls the feed frame to move to the corresponding feed slot, and the right hand releases the button. Manually deliver the aluminium strip to the conveyor belt position.

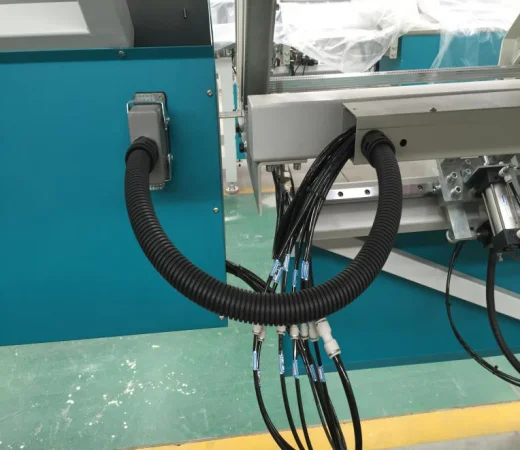

3. Heavy duty connectors is convenience and safety for installation and debugging Is there any aluminum bar in the induction feeding tank? When there is no aluminum bar and the aluminum bar leaves the induction switch on the left side of the feeding, the aluminum hook wheel picks up the material from the feeding rack.

Max.bending size	2000mm*2000mm
Min.bending size	250mm*200mm
Aluminum spacer width	6A-27A
Dimension error	±0.5mm
Angle error	±1
Air supply	≥0.65Mpa
Total power	AC 220V/380V 50HZ 2.5KW

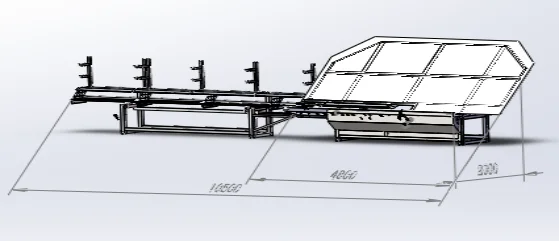

Dimension	10500mm2200mm2600mm

Portable Aluminum Spacer Bending Machine For Ig Processing Insulated Glass
