Intelligent Aluminum Bar Bending Machine One Screen Control Data Can Be Adjusted

Name: Intelligent Aluminum Bar Bending Machine One Screen Control Data Can Be Adjusted
Brand: LIJIANG GLASS
Price: 30 USD

Buy cheap Intelligent Aluminum Bar Bending Machine One Screen Control Data Can Be Adjusted product

Brand Name : LIJIANG GLASS

Model Number : LJZW2020

Certification : CE

Place of Origin : CHINA

MOQ : ONE

Price : $30,000 per unit

Payment Terms : L/C, T/T

Supply Ability : Ten units per month

Delivery Time : 15 working days

Packaging Details : Wooden boxes and containers

Voltage : 220-450v

Power : 15kw

Dimension(L*W*H) : 10*3*3m

min frame size : 250*200mm

Max frame size : 2500*2500mm

Contact Now

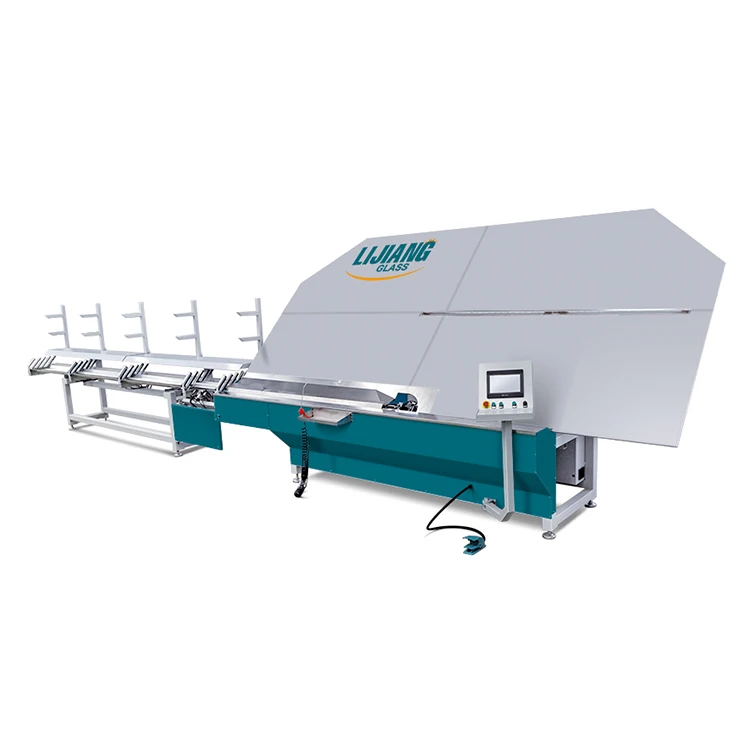

Automatic high-speed intelligent aluminum bar bending machine, one-screen control data can be adjusted at will

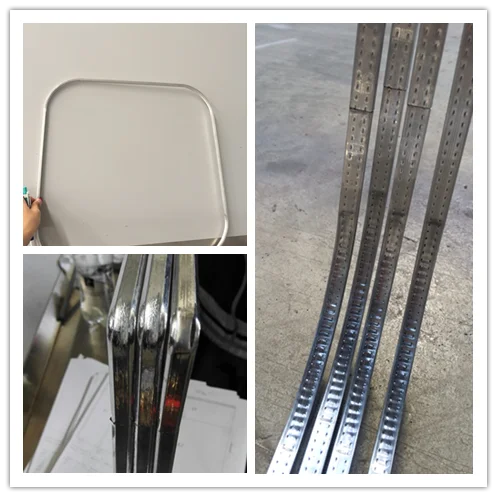

Details display

Main Feature

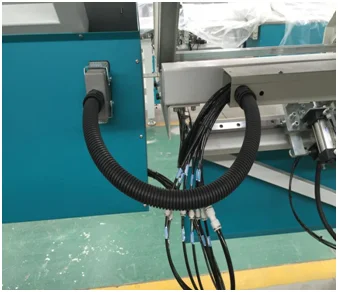

1.4 different spacer size storage units 2.Can bend aluminum spacer Spacer auto connecting and cutting ,auto avoid spacer connection while bending and cutting 3.Support continuous bending , Auto-connect with next spacer. 4.machine auto stop when no spacer supplied 5.USB input function ,it can read the excel data directly 6.Spare parts of all machine have code ,convenient for after-sale 7.Heavy duty connectors ,convenience and safety for installation and debugging 8.German siemes plc control systerm &servo control system 9.Magnetic valve use Taiwan Airtac.
Main Technicial Parameter
  	 			Item.
 			Spec.

 			Max.bending size
 			2000*2000mm

 			Min.bending size
 			250*200mm

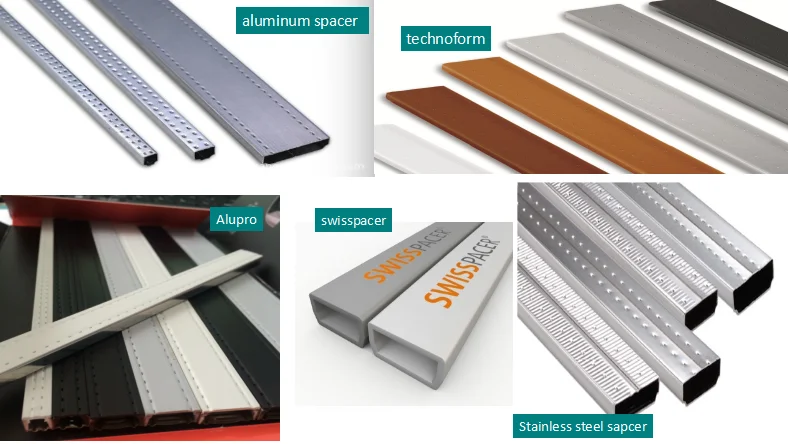

 			Aluminum spacer width
 			6-27A

 			Dimensional error:
 			≤±0.5mm

 			Angle error
 			≤±1º

 			1m*1m aluminum spacer
 			17s

 			Air supply
 			≥0.65MPa

 			Total power
 			AC220/380V 50Hz 2.5KW

 			Dimension
 			10500mm*2200mm*2600mm


  	 			Name
 			Brand

 			PLC
 			GERMAN SIEMENS

 			Low voltage electrical apparatus
 			GERMAN SIEMENS

 			Servo motor
 			GERMAN SIEMENS

 			Servo driver
 			GERMAN SIEMENS

 			Relay
 			JAPAN OMRON

 			Triplet
 			Taiwan AIRTAC

 			Cylinder
 			Taiwan AIRTAC

 			TOUCH SCREEN
 			Taiwan WEINVIEW

 			Switch power
 			Taiwan TEND

 			GUIDE
 			Taiwan TBI

 			Solenoid valve
 			Taiwan AIRTAC

 			Sensor
 			KOREA AUTONICS

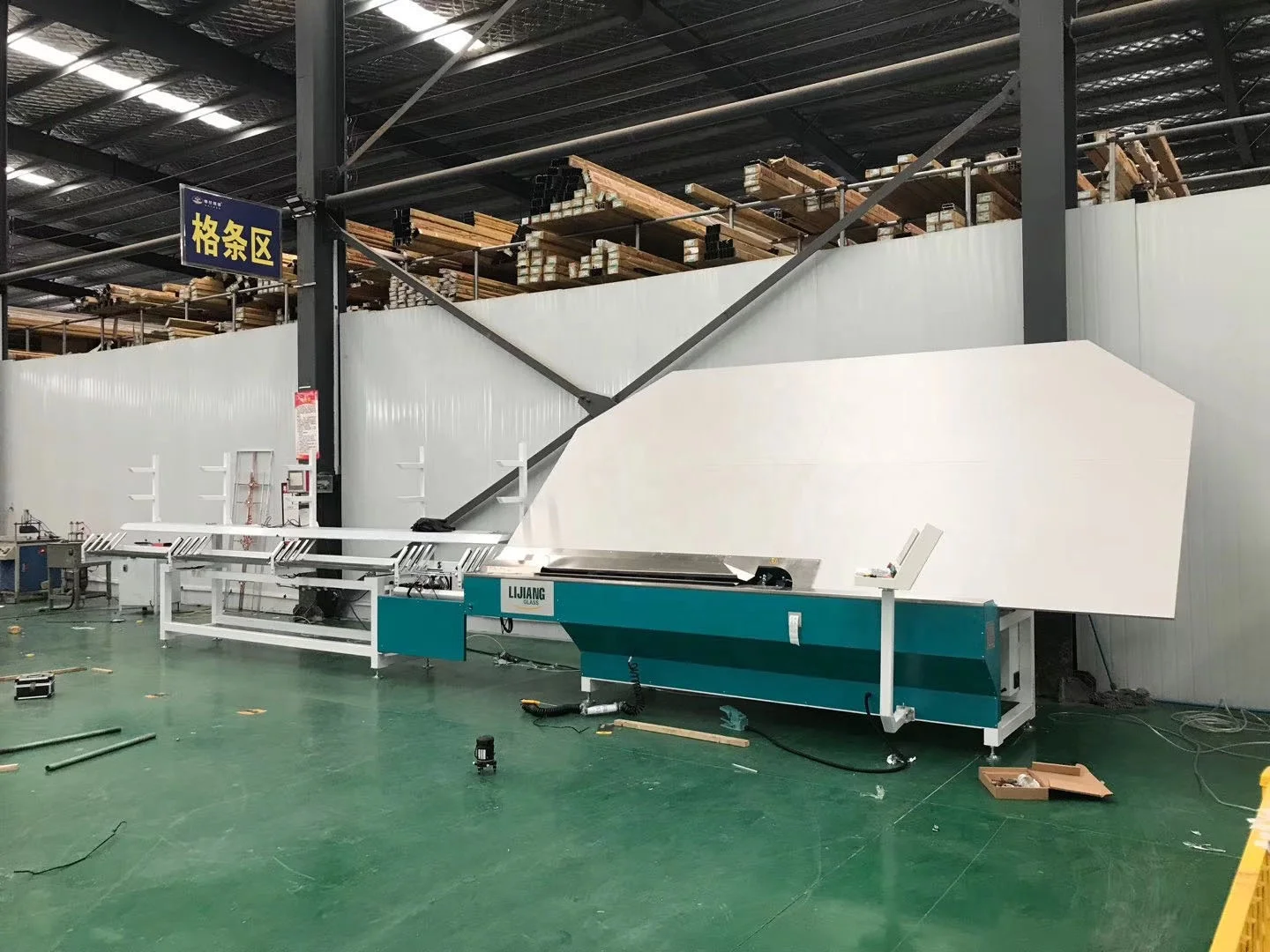

Factory display

Factory Show

Jinan LIJIANG Glass could supply you:
Vertical Insulated Glass Produce Line for double glass production line Auto Sealing Robot for double glass production line Sealant Spreading Machine for double glass production line Low-E Glass Washing &Drying Machine for double glass production line Smart Edge Deleting Machine for double glass production line Automatic Spacer Bending Machine for double glass production line Automatic Desiccant Filling Machine for double glass production line Butyl Extruder Machine for double glass production line Glass Edge grinding Machine for double glass production line Spacer Cutting Machine for double glass production line Sealing gun Freezer for double glass production Rotated Sealant Spreading Table double glass sealing Argon Gas Filling Machine double glass Semi-auto Aluminum Frame Transfer Machine for double glass production line Molecular Sieve Filling Machine double glass production line Glass Lifting Table double glass production line Glass Loading /unloading Device for double glass production line Water Treatment System for double glass production line (Economy) Water Treatment System double glass production line (Advanced)
