Convenient Vertical Glass Washing Machine Water Tank Cleaning Change Inspection

Name: Convenient Vertical Glass Washing Machine Water Tank Cleaning Change Inspection
Brand: LIJIANG GLASS
Price: 35 USD

Buy cheap Convenient Vertical Glass Washing Machine Water Tank Cleaning Change Inspection product

Brand Name : LIJIANG GLASS

Model Number : CP-2500A

Certification : CE

Place of Origin : CHINA

MOQ : ONE

Price : $35,000 each

Payment Terms : L/C, T/T

Supply Ability : 15 units per month

Delivery Time : 20 working days

Packaging Details : Containers and wooden boxes

Power : 42KW

Weight : 3940KG

Voltage : 380V50HZ

Dimension(L*W*H) : 6260*4800*3100

Warranty : 1 Year

Total power : 3P 380V 50Hz

Contact Now

Glass washing machine technical parameters water tank outside, convenient water tank cleaning, change, inspection

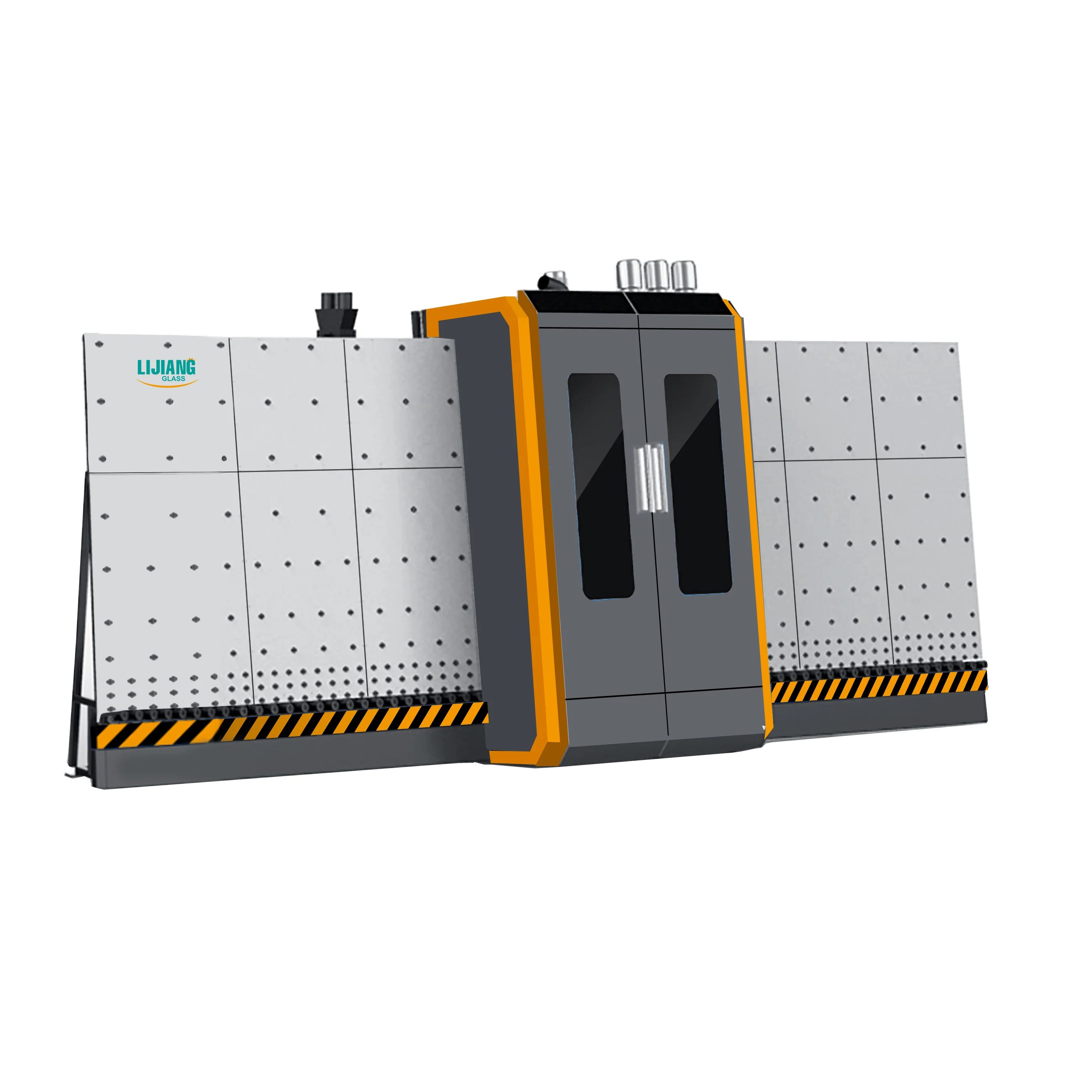

Convenient Vertical Glass Washing Machine Water Tank Cleaning Change Inspection

Glass washing machine technical parameters CP-2500A

glass washing machine CP-2500A used for cleaning and drying the upper and lower surfaces of ordinary plate glass and high quality low-e glass,it is composed of incoming segment, cleaning air-drying segment and outgoing segment. 2, Structural characteristics: 1. Aluminum alloy assembled structure, no scrap concept, permanent use, high efficiency, energy saving 70% efficiency； 2. The rest of the sheet metal parts are sprayed with advanced mechanical paint or powder； 3. The rubber roller is made of vulcanized rubber with stainless steel shaft； 4. The washing part in contact with water is made of stainless steel； 5. Cleaning department, wind staff overall lift, the maximum lift: 350mm,easy to clean and maintain； 6. Three pairs of brush(Ø150mm)Stainless steel shaft configuration (low-e glass, ordinary coated glass and sunshine coated glass can be washed without damaging the coated surface)；

1. Aluminum alloy assembled structure, no scrap concept, permanent use, high efficiency, energy saving 70% efficiency； 2. The rest of the sheet metal parts are sprayed with advanced mechanical paint or powder； 3. The rubber roller is made of vulcanized rubber with stainless steel shaft； 4. The washing part in contact with water is made of stainless steel；

1. Cleaning department, wind staff overall lift, the maximum lift: 350mm,easy to clean and maintain； 2. Three pairs of brush(Ø150mm)Stainless steel shaft configuration (low-e glass, ordinary coated glass and sunshine coated glass can be washed without damaging the coated surface)； 3. Two pairs of special stainless steel aluminum alloy air knife configuration, strong wind, good air drying effect, with heating system(with temperature control device, optional opening and closing)；

Title goes here.

1. The fan is equipped with air filter in the air inlet chamber, with large air volume and good air drying effect,The whole fan box is installed in the upper part of the workshop, with the air filter screen on the side for easy inspection and cleaning； 2. Main drive for gear transmission, frequency control, digital display , the rotation of the brush roller in the washing section is driven by independent belts of the upper and lower motors respectively, the frequency conversion adjustment speed is stable, the service life is long, realizes the cleaning high request special glass；

Item.	Spec.
Maximum glass width	2500mm (effective maximum: 2650mm)
Minimum glass specification	400mm×400mm (limited to single row on left and right sides)
Glass thickness	3mm-25mm (digital display)
Speed range	glass thickness within 3-25mm Vmax=1-12m/min
Main drive, brush speed regulation method	frequency control
Table height	900±25mm
Total power	42KW(water-bearing wind heating: 15KW)
Water source	self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment shall be provided by the buyer)
Power source	380V 50Hz
Dimensions (length × width × height)	approximately 626048003100
Weight	3940kg
