Integrated Automatic Aluminum Bar Bending Robot Can Handle Special Shapes

Product Categories
Jinan Lijiang Automation Equipment Co., Ltd.
Contact Now

Integrated Automatic Aluminum Bar Bending Robot Can Handle Special Shapes

Brand Name : LIJIANG GLASS

Model Number : LJZW2020

Certification : CE

Place of Origin : CHINA

MOQ : 3 sets minimum order

Price : $ 30000 per unit

Payment Terms : L/C, T/T, D/P

Supply Ability : 20 units per month

Delivery Time : 10-28 working days

Packaging Details : Containers and wooden boxes

Power : 2.5KW

Voltage : 380V50HZ

Weight : 1680KG

Glass Thickness : 1-40mm

Marketing Type : New Product 2020

Dimension(L*W*H) : 10500mm*2200mm*2600mm

Contact Now

Automatic measurement, can handle special shapes, integrated automatic aluminum bar bending robot
Integrated Automatic Aluminum Bar Bending Robot Can Handle Special Shapes
Integrated Automatic Aluminum Bar Bending Robot Can Handle Special Shapes

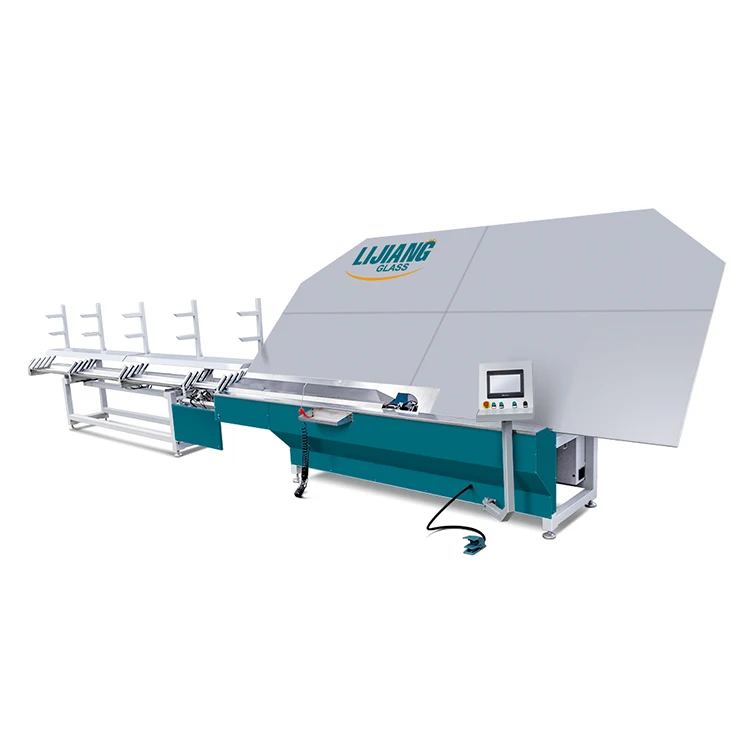

Automatic spacer bending machine LJZW2020

Automatic spacer bending machine is a special equipment for making aluminum frames of insulating glass, which replaces the traditional fabrication technology. Automatic spacer bending machine can make a variety of convex polygonal aluminum frames by one aluminum strip in one time, thus strengthening the strength of the aluminum frame, making the sealing effect of the insulating glass more better.
Integrated Automatic Aluminum Bar Bending Robot Can Handle Special Shapes
Max.bending size
2000mm*2000mm (2500mm*2500mm)
Min.bending size
250mm*200mm
Aluminum spacer width
5.5-27mm
Dimensional error
±0.5mm
Angle error
±1º
Processing speed
≤26s
Air supply
≥0.65MPa
Total power
AC220/380V 50Hz 2.5KW
Dimension
10500mm*2200mm*2600mm
Integrated Automatic Aluminum Bar Bending Robot Can Handle Special Shapes
Integrated Automatic Aluminum Bar Bending Robot Can Handle Special Shapes

l Automatically avoid the connecting corner while bending and cutting l The machine grabs the spacer from the top instead of grabbing the spacer from bottom, solving the old-fashioned reversing problem.
Item.
Spec.
Max.bending size
2000mm*2000mm (2500mm*2500mm)
Min.bending size
250mm*200mm
Aluminum spacer width
5.5-27mm
Dimensional error
±0.5mm
Angle error
±1º
Processing speed
≤26s
Air supply
≥0.65MPa
Total power
AC220/380V 50Hz 2.5KW
Dimension
10500mm*2200mm*2600mm
Above information is the Specification. from Jinan LIJIANG Glass Standards.
If customers want to change the Spec., please let us know.
Integrated Automatic Aluminum Bar Bending Robot Can Handle Special Shapes
Integrated Automatic Aluminum Bar Bending Robot Can Handle Special Shapes
Integrated Automatic Aluminum Bar Bending Robot Can Handle Special Shapes
Integrated Automatic Aluminum Bar Bending Robot Can Handle Special Shapes
Integrated Automatic Aluminum Bar Bending Robot Can Handle Special Shapes
Integrated Automatic Aluminum Bar Bending Robot Can Handle Special Shapes
Integrated Automatic Aluminum Bar Bending Robot Can Handle Special Shapes
Integrated Automatic Aluminum Bar Bending Robot Can Handle Special Shapes

Benefits & Advantages
Adopt Siemens PLC control system
There are 4 Siemens servo
Adopt 12 sets of racks which could storage more different sizes of spacers.
Use Siemens servo to change different racks. Automatically cut and feed aluminum spacers
Bend shaped spacer frames continuously
Automatically avoid the connecting corner while bending and cutting
The machine grabs the spacer from the top instead of grabbing the spacer from bottom, solving the old-fashioned reversing problem.
Using industrial computer technology which could realize the on-site drawing by workers on the industrial computer and directly bending the drawn graphics.
Integrated Automatic Aluminum Bar Bending Robot Can Handle Special Shapes

l Using industrial computer technology which could realize the on-site drawing by workers on the industrial computer and directly bending the drawn graphics. l The special machine hand device is used to bend big spacer frame
