Intelligent Insulating Glass Production Line Fast Cleaning Plate Pressing

Name: Intelligent Insulating Glass Production Line Fast Cleaning Plate Pressing
Brand: JINAN LIJIANG GLASS
Price: 75 USD

Buy cheap Intelligent Insulating Glass Production Line Fast Cleaning Plate Pressing product

Brand Name : JINAN LIJIANG GLASS

Model Number : LJBZ2535

Place of Origin : CHINA

MOQ : 1 Set (Min. Order)

Price : 75,000.00 USD/set

Payment Terms : L/C, T/T

Supply Ability : 3sets/per month

Delivery Time : 14-26 WORK DAYS

Packaging Details : WOODEN BOX

Max. glass size : 2500mm*3500mm

Max glass size for filling gas : 2500mm*3200mm

Condition : New

Dimension(l*w*h) : 25500H*3000W*3500H mm,3000mm * 600mm * 950 mm,1*1.4*5m,21000X2100X3300MM,19720X2200X2850 MM

Power(w) : 380V 50Hz 3P

Color : Blue or customize

Name : insulating glass machine

Min. glass size : 450*280

Contact Now

Intelligent Insulating Glass Production Line Fast Cleaning Plate Pressing

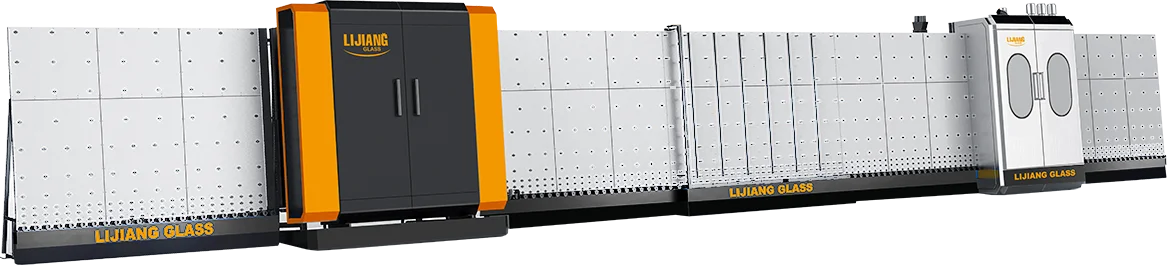

LJBZ2535 Vertical Automatic Insulating glass production line

APPLICATION
 As the most important process of insulating glass production, we are especially professional in glass cleaning, transmitting pressing and gas filling(optional).The production line can do double glass,triple glass and stepped glass.

Drying knife design

Touching screen

Three pairs of soft brushes

LJBZ2535 Vertical Automatic Insulating glass production line include 7 parts: (standard model :from right to left)
 1,Loading section(with low-e checking)
 2,washing and drying section(can washing low-e glass)
 3,conveyor section
 4,checking and assembly section
 5, conveyor , measure and sensor section
 6,press part with gas filling
 7,unloading sectionSemi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine Advantage:  Gas filling on line syetem(option)
About Gas filling online of LJBZ2535 Vertical Automatic Insulating glass production line, we can input the suitable gas proportion value on the touch screen , during the gas filling process, the touch screen can show us the whole gas filing
 process visually . (You can see the video that I have sent you before.)We are the first and the only one company who can show the argon percentage on the touch screen on line,its very useful for customer,When argon gas filling,it will show the whole process on the screen. When it reach the data customer set ,It will alarm and stop. So it can save the argon gas. And save the time.

Washing speed	2~10m/min
Max.working speed	45m/min
Washing glass thickness	3~15mm
Max.insulating glass thickness	60mm
Conveyor height	500mm
Min.glass size	450×280
Max.glass size	2500×3500

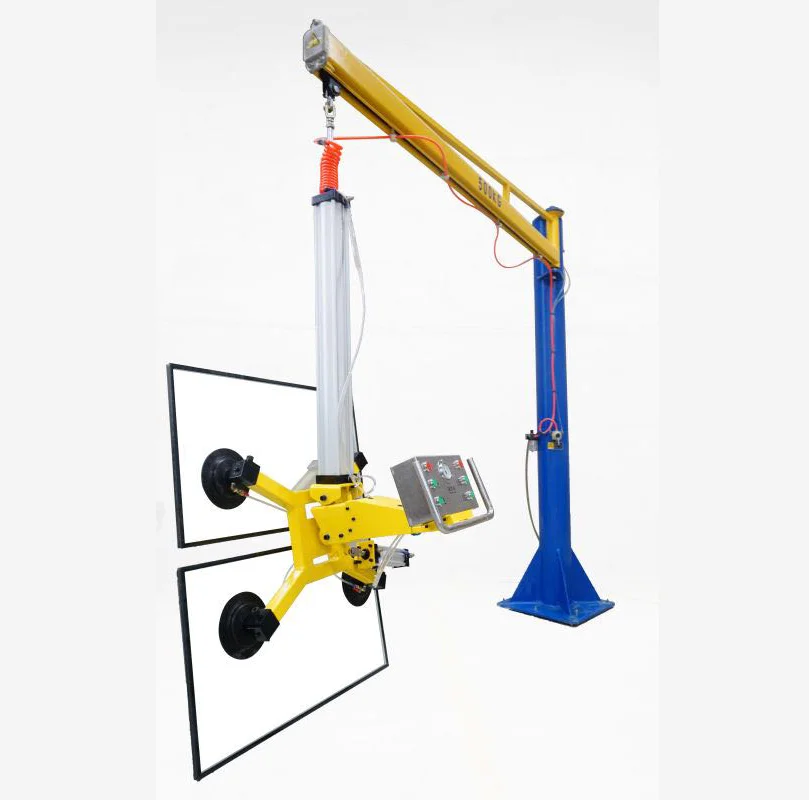

Cantilever crane LJXJ300

This vacuum glass lifter is for handling insulating glass sheet.
This glass lifter is able to lift the glass sheet with 800kg
It is equip with 5 suckers. But the sucker can be add according to need of the client.
The equipment is Stable, Easy to use and safe.
The vacuum lifter is equipped with a warning light in case of a power failure or vacuum leakage, an optical and an acoustic signal goes off immediately to warn the operator to do emergency operation.

Product Tags:

Intelligent Insulating Glass Production Line

Fast Cleaning Insulating Glass Production Line

Plate Pressing insulating glass line
